PowerKey Pro Keypad (PKP-1600-SI) 6 Key (15mm)
PowerKey Pro Keypad (PKP-1600-SI) 6 Key (15mm)
Default protocol is J1939, conversion to CanOpen is no charge and will be done at customer's request.

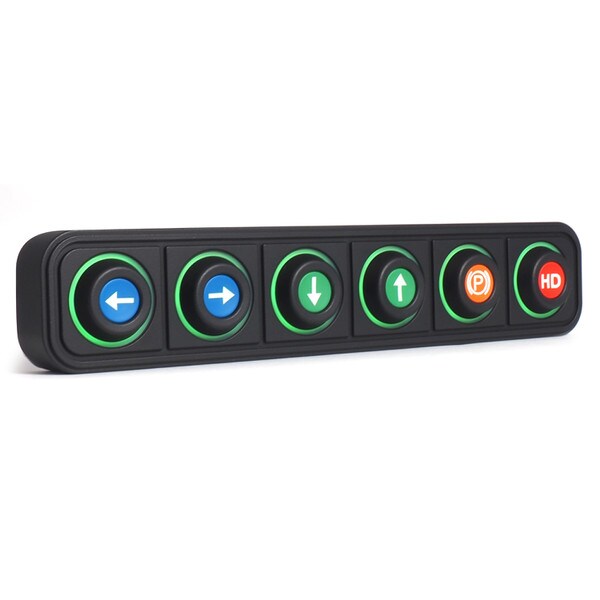

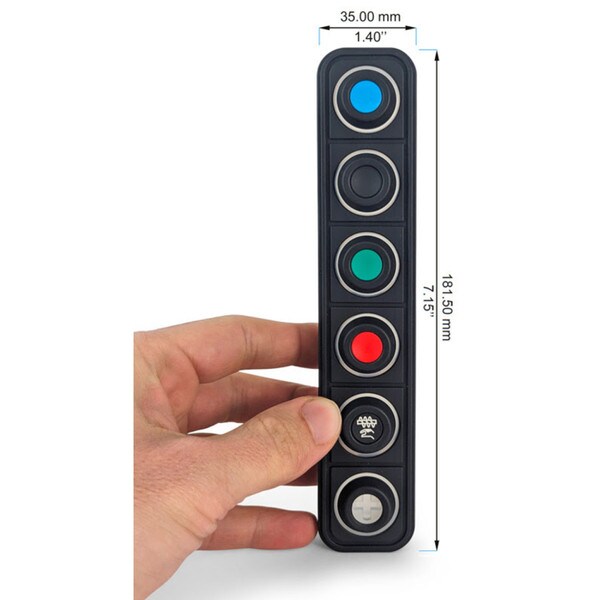

PKP-1600-SI is the first single line keypad of the PKP-SI series. It features six 15mm keys that can be customized with replaceable icons and LED colors. It can be installed vertically or horizontally, and its slim and lengthy profile allows for various placements both inside and outside the cockpit. Like the other keypads in the PKP-SI series, the PKP-2600-SI is also IP67 rated and is available for both CANopen and J1939 protocols.
Software Features:
• CAN and RS485 Keypad Addresses – Assign any valid CAN and RS485 address to the keypad. Communicate on either BUS simultaneously.
• J1939 Address Claim Transmission – Keypads no longer have to be pre-programmed to a specific address. This enables customers that work in applications in the field without access to a GUI to use any replacement keypad on-hand. The keypad can be configured to automatically announce its address and accept a new address assignment as appropriate.
• Event Status Transmission – The keypad can send messages to the BUS indicating a button press or a button release event has occurred. This confirmation allows digital systems to have the same input acknowledgements as that of the latching position of a mechanical switch.
• Periodic Status Transmission – The keypad sends a continuous broadcast of messages indicating the press or release status of each button at that instance. The frequency of these messages can be adjusted in a wide range.
• Online Set-up – An online set-up system makes it possible to select and design your own prototype, then order it directly on Blink Marine’s website.
• Periodic Heartbeat – The keypad sends a continuous broadcast of messages indicating it is functioning correctly. The frequency of these messages can be adjusted in a wide range.
• CANopen Communications Protocol – Fully compliant with Device Profile 401d.
Hardware Features:
• IP67/IP69K waterproof rating – Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.
• UV Protected – UVB 400 hours: Keypad is highly resistant to deterioration caused by exposure to sunlight.

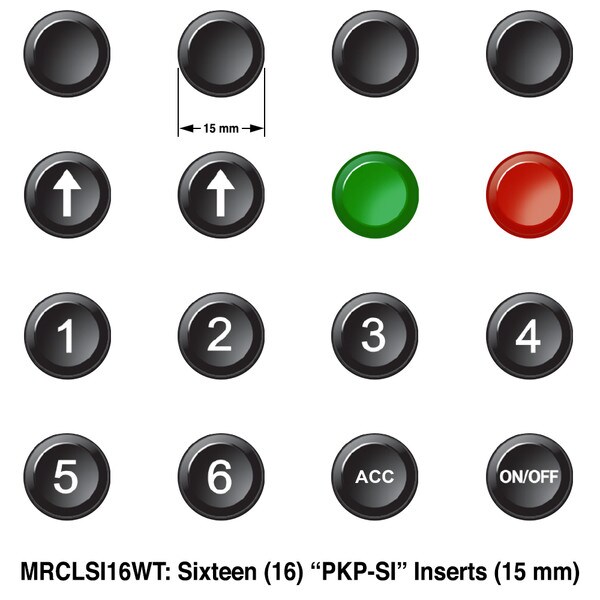

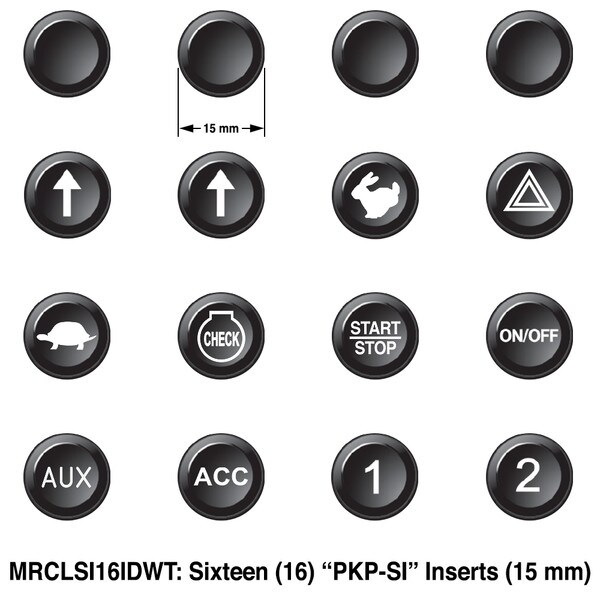

• Interchangeable inserts – NOTE: This keypad model DOES NOT include the optional icon inserts. The replacement system for individual inserts makes modifying the keypad layout simpler and more economical. Over one thousand different stock inserts can be viewed in Blink’s insert lists, linked below in the Literature section. It’s also possible to order customized inserts.
• A membrane compensation valve which self-compensate the internal pressure within the keypad, alleviating mechanical stresses that can be produced by shifts in external temperatures.
• The keypad’s symmetrical design and spacing between keys makes it easier to install multiple keypads alongside one another.
Standard Features:
• Reconfigurable keys
• LED state & status configurable
• Vertical or horizontal mount
• Flush or front mount
• LED backlit icons
• Multicolor indicator rings
• ON/OFF, momentary, toggle & scroll
• Over one thousand stock, laser-etched inserts to choose from
• Programmer’s manual available to help support plug-and-play reconfigurability
• Available in fixed legends
Literature:
You may select from over one thousand unique pre-existing laser etched icon inserts. It is also possible to order customized inserts. Take a moment to view each of the 3 Industry Insert Lists below to find alternate etched icon inserts that may be perfect for your keypad’s application.
