Trombetta Q610-A13V12: 12 Volt Push Solenoid *DISCONTINUED*
Trombetta Q610-A13V12: 12 Volt Push Solenoid *DISCONTINUED* AS SUPPLIES LAST

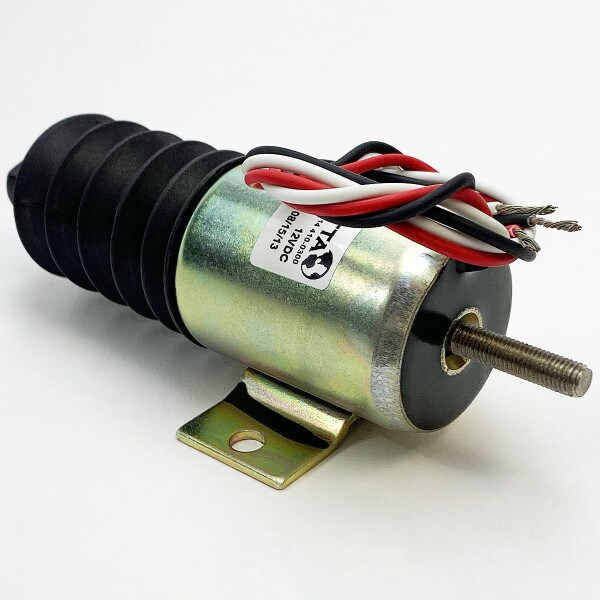

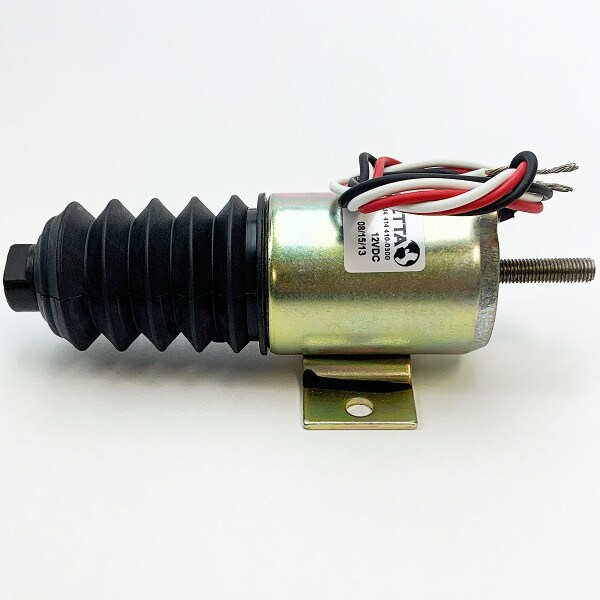

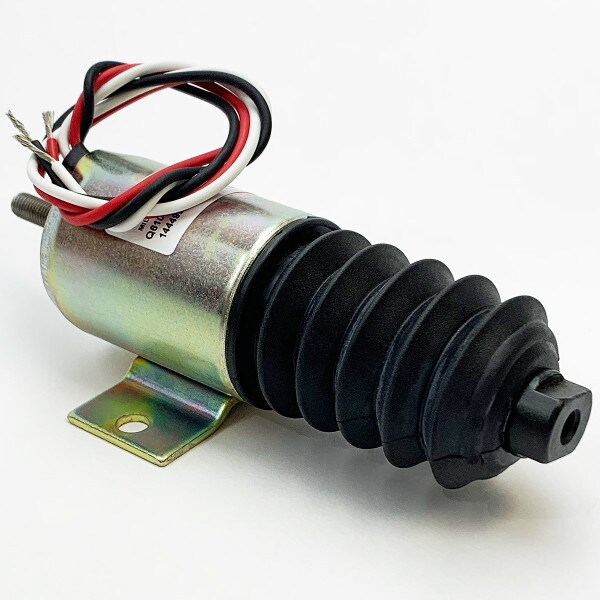

The Trombetta Q610-A13V12 is a 3-wire, 12 volt push type solenoid built to withstand high temperatures and high vibration environments.
This solenoid uses no return spring and has a maximum stroke of 1.0" (25.4 mm).
Net Pull Force: 15 lbs. (67 newtons)
Net Hold Force: 20 lbs. (89 newtons)
Coil resistance (ohms): 0.25 / 12
Pull-in (amps): 49
Hold (amps): 1.0
Thread: 1/4-28
(for Isuzu include spring #F09514 and boot #E07527)
Literature:
- Sales Bulletin: P600/Q600
- Installation Instructions: P & Q600 Series Dual Coil "3-Wire" DC Solenoids
- Q610-A13 Series: Abbreviated Specifications & Dimensions
