Trombetta Q610-A1V00: Two-Wire Push Solenoid
Trombetta Q610-A1V00: Two-Wire Push Solenoid

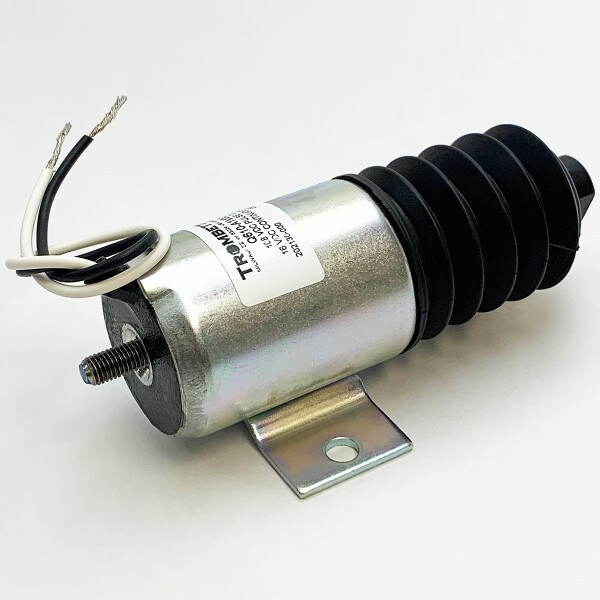

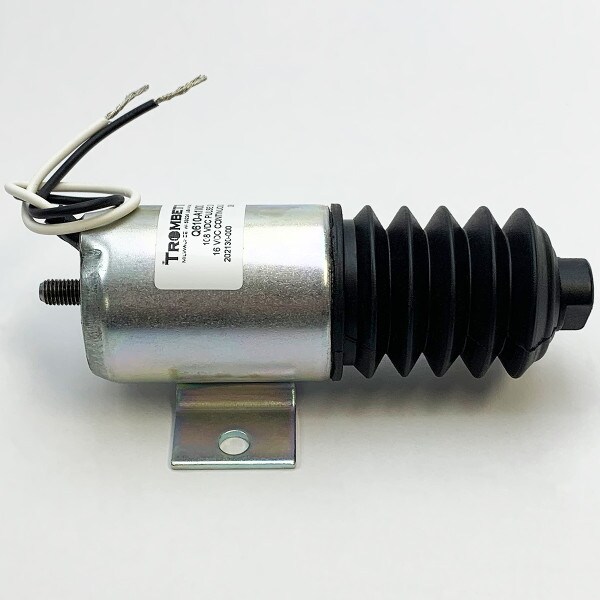

The Trombetta Q610-A1V00 is a two-wire, push type solenoid rated at 108 VDC "pulse duty" and 16 VDC "continuous duty".
It is built to withstand high temperature and high vibration environments. This side-mounting unit has no return spring, a maximum stroke of 1 inch and utilizes a push rod with a 1/4 - 28 thread on the outer 1/2" of the rod.
Literature:
- Sales Bulletin: P600/Q600
- Installation Instructions: P & Q600 Series Dual Coil "3-Wire" DC Solenoids
- Q610-A1 Series: Abbreviated Specifications & Dimensions
MurCal is an Authorized Distributor of Trombetta products.
MurCal provides application and product support, before and after the sale. Our in-house technical sales representatives have been trained by Trombetta and have the knowledge necessary to answer your questions. When you make an important purchase decision, be sure to consider the company that provides Trombetta's factory authorized sales and service.
