RDM 2.0 Remote Display Module (A53Y0)

(0) No Reviews yet
$1,697.25
SKU: CRE - RDM 2.0 Remote Display (A53Y0)

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

Details

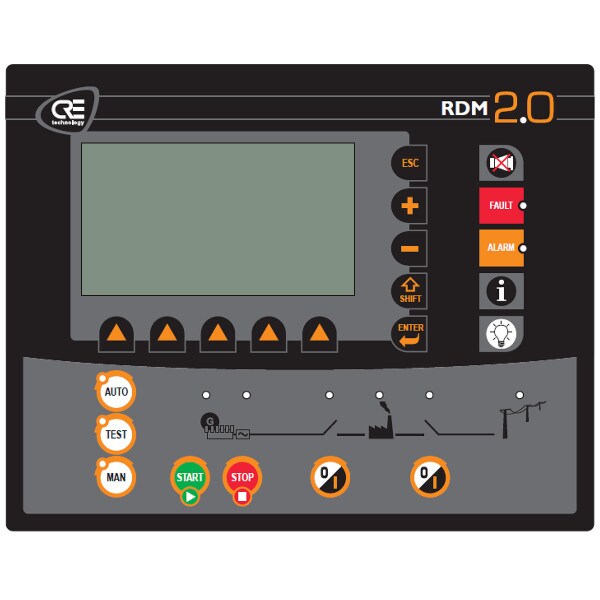

RDM 2.0 Remote Display Module (A53Y0)




The RDM 2.0 works as a remote display and, when combined with any of the GENSYS 2.0 range modules, can control a single or a multiple generating sets power plant. The RDM 2.0 screen will display the same data, namely engine and electrical parameters for intuitive operation.



The RDM 2.0 remote display can be used with any of the following modules:



• GENSYS 2.0



• GENSYS 2.0 CORE



• GENSYS 2.0 LT



• MASTER 2.0



• MASTER 2.0 CORE







The RDM 2.0 allows you to display, configure and control the connected module. RDM 2.0 must be connected to a control unit which firmware is at least v4.04. Previous firmware versions are not compatible with RDM 2.0 module. Designed as a multi-control HMI, a single RDM 2.0 can control up to 16 modules.



The user interface can be controlled using different ways: Directly on local browser using front panel LCD screen and keyboard, or remotely using your favorite Internet Web browser.







Information Display Features:





Engine Parameters: Oil Pressure, Water Temperature, Speed, Hourmeter



Generator Electrical Parameters: Phase-Phase Voltage, Phase-Neutral Voltage, Current, Frequency, Active Power, Reactive Power, Power Factor, Active Power Energy, Reactive Power Energy



Mains Electrical Parameters: Phase-Phase Voltage, Current, Frequency, Active Power, Reactive Power, Power Factor, Import Active Power Energy (kWh), Import Reactive Power Energy (kVARh)



User Display: Fifty (50) spare display lines



Ports: Four (4) Digital Inputs, Four (4) Digital Outputs, Ethernet for connected module and embedded website



Environmental: Front Panel - IP64 Protection, Rear Panel - IP20 Protection








Literature:




Sales Bulletin



Technical Documentation



Technical Documentation: Ethernet Connection Instructions
