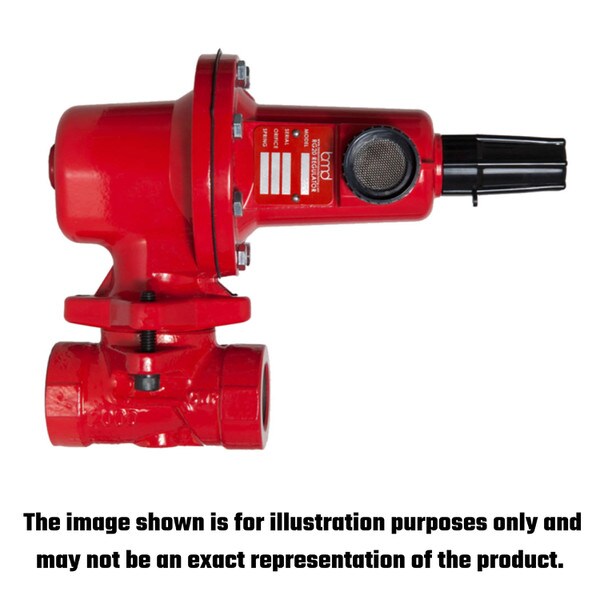

RG20, 1" Body, Threaded, Aluminum Trim, 3/8" Port, 70-150 PSI Spring (RG20-1N50-A1B6-4)

bmd - RG20 Series Regulator, 1" Body, Threaded Ends, Aluminum Trim, Buna Seat and Seals, 3/8 Port, 70-150 PSI Spring (RG20-1N50-A1B6-4)

This RG20 is a direct spring operated pressure regulator that can be used anywhere pressure regulation of natural gas, air, or other gas is required. During installation, its housing can be moved to one of four positions to save space. The RG20 was designed for easy maintenance by allowing access to the body without removing it from the line.

Features

• 1” NPT (Female) Connection, Threaded
• WCB Steel Body
• Aluminum Housing and Spring Cover
• Buna Diaphragm and Seal Material
• Buna Seat Material
• Aluminum Orifice and Disk Holder
• 0.375” (3/8”) Orifice Size
• 70-150 psi Outlet Spring Range

This pressure regulator is a perfect replacement part for the following competitor models:

• WellMark 2002PR Mighty Gun
• Mallard 5646B
• Fisher 627 Little Joe
• BelGas P627

Literature

RG20 Series Pressure Regulator Sales Bulletin
