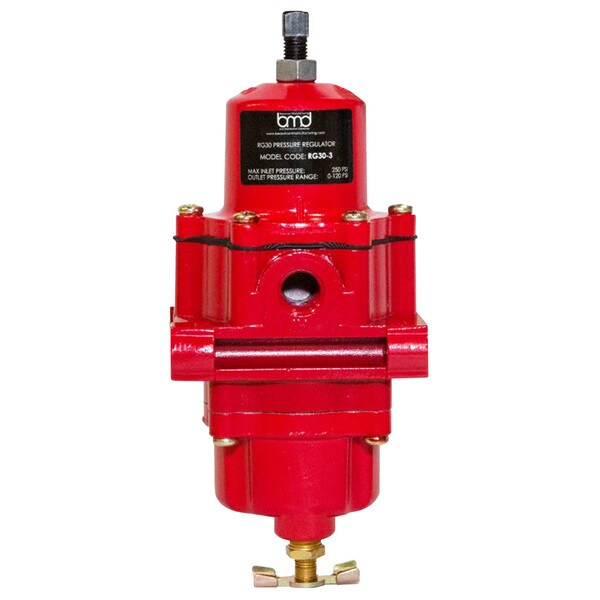

RG30 Air Filter Regulator, 0-120 psi Range, Aluminum (RG30-3)

RG30 Series Air Filter Regulator, 1/4” NPT Connection, Die Cast Aluminum Housing and Body, 250 psi Inlet Pressure Rating, and 0-120 psi Output Range
(RG30-3)

This RG30 is a compact, spring-operated regulator normally used to supply air or gas to pilots, positioners, or other pneumatic controls. This model features a 1/4” NPT connection, rugged die cast aluminum housing and body with dual outlets, 250 psi inlet pressure, 0-120 psi output range, an internal relief to help maintain an accurate downstream pressure, and a built-in micron filter.

Features

•  1/4” NPT Connection<
•  Die Cast Aluminum Housing
•  Die Cast Aluminum Body
•  250 psi Inlet Pressure Rating
•  0-120 psi Output (Spring) Range
•  -20°F to 180°F (-29°C to 82°C) Temperature Range

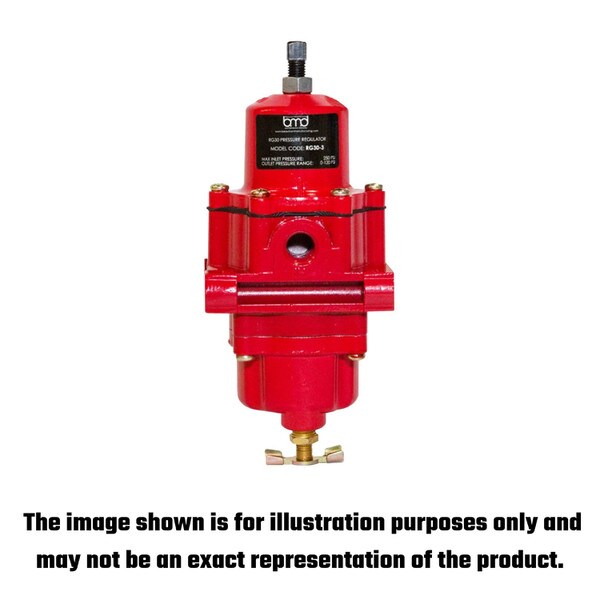

Larger Image: RG30 Series Air Filter Regulator


This pressure regulator is a perfect replacement part for the following competitor models:

•  WellMark W67FR Mini Gun II
•  Mallard 5602
•  Fisher 67CFR
•  BelGas P50
•  Norriseal 73-68-1

Literature

RG30 Series Air Filter Regulator Sales Bulletin
