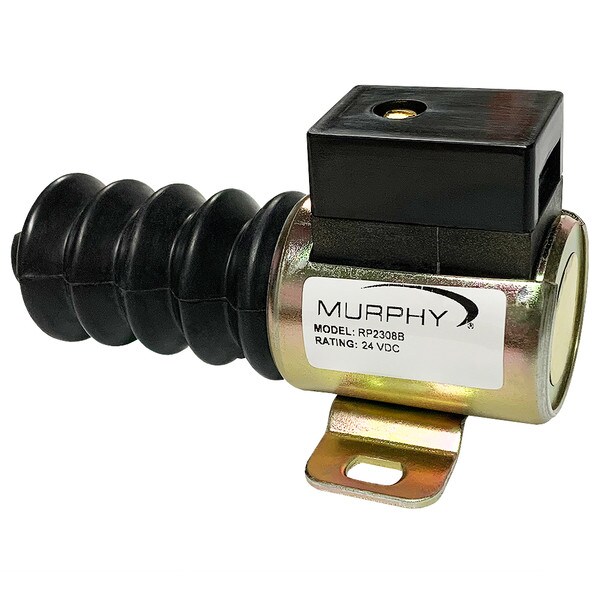

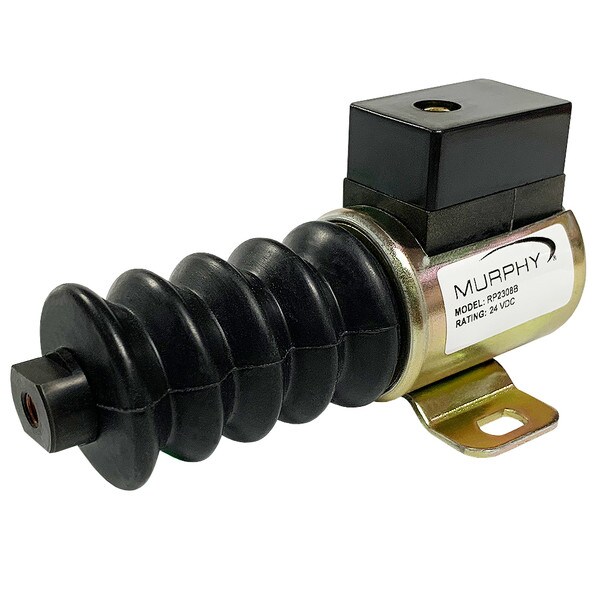

RP2308B (40700093): 24 Volt Push/Pull DC Solenoid
RP2308B: Push/Pull DC Solenoid; 24VDC; 1" stroke (40700093)
The Murphy RP2308B Push/Pull DC Solenoid provides single unit versatility for engine applications, such as shutdown.
This 24-volt model gives a full one-inch (25 mm) stroke at 11 pounds (49N) and holds up to 23 pounds (102N) at full voltage, continuous duty. The unit will operate at any stroke less than maximum, such as 1/2 or 3/4 stroke.
The RP2308B measures 5" in length with the plunger seated (coil energized), 2-7/16" in height and 2-1/2" across the base. It ships complete with return spring and rubber seal boot.
MurCal is an Authorized Distributor of Enovation Controls products.
MurCal provides experienced application and product support, before and after the sale.
