RP2309B DC Solenoid (40700094)

(0)No Reviews yet
$144.49
SKU: RP2309B (40700094)

This item is IN STOCK

Current Stock: 11

RP2309B (40700094)

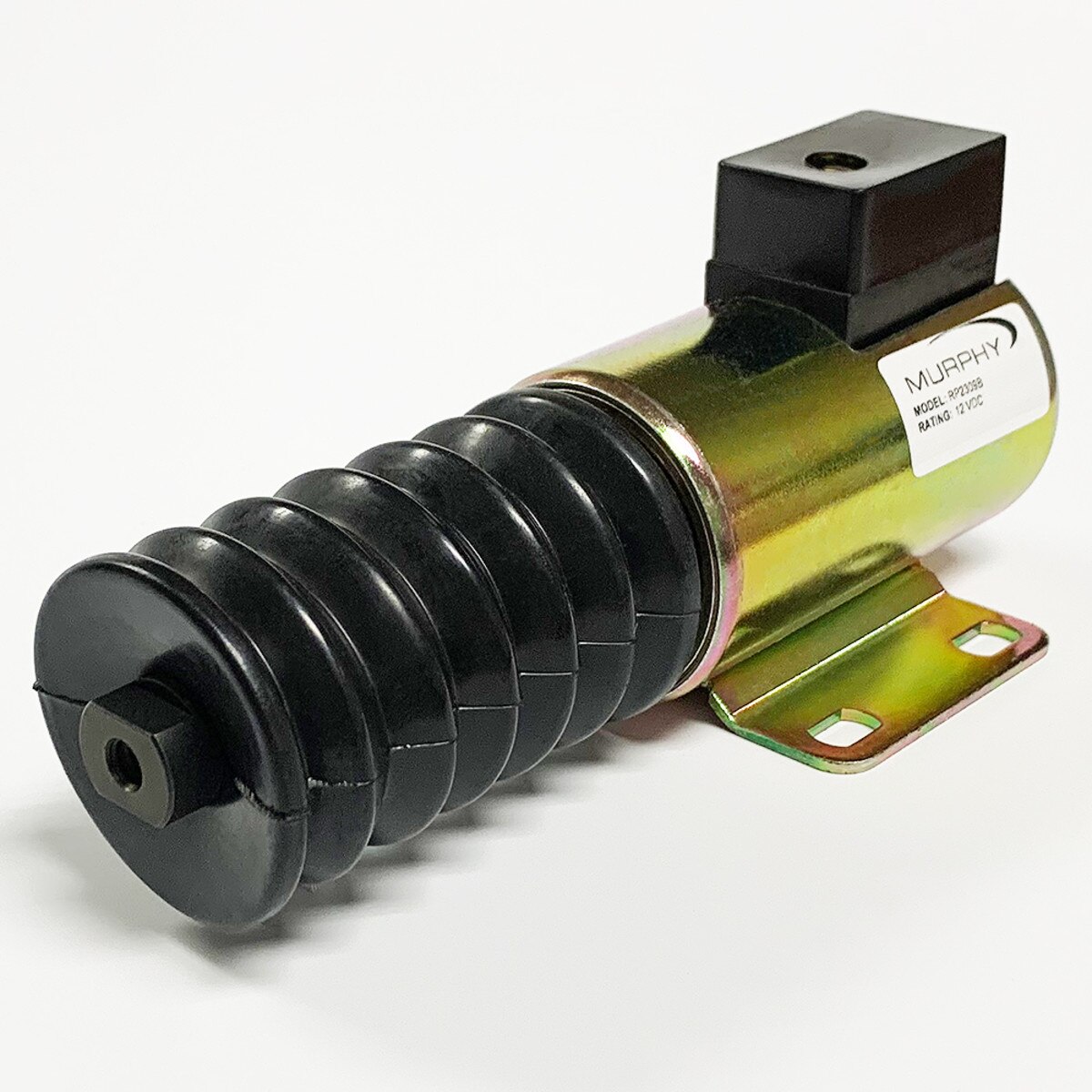

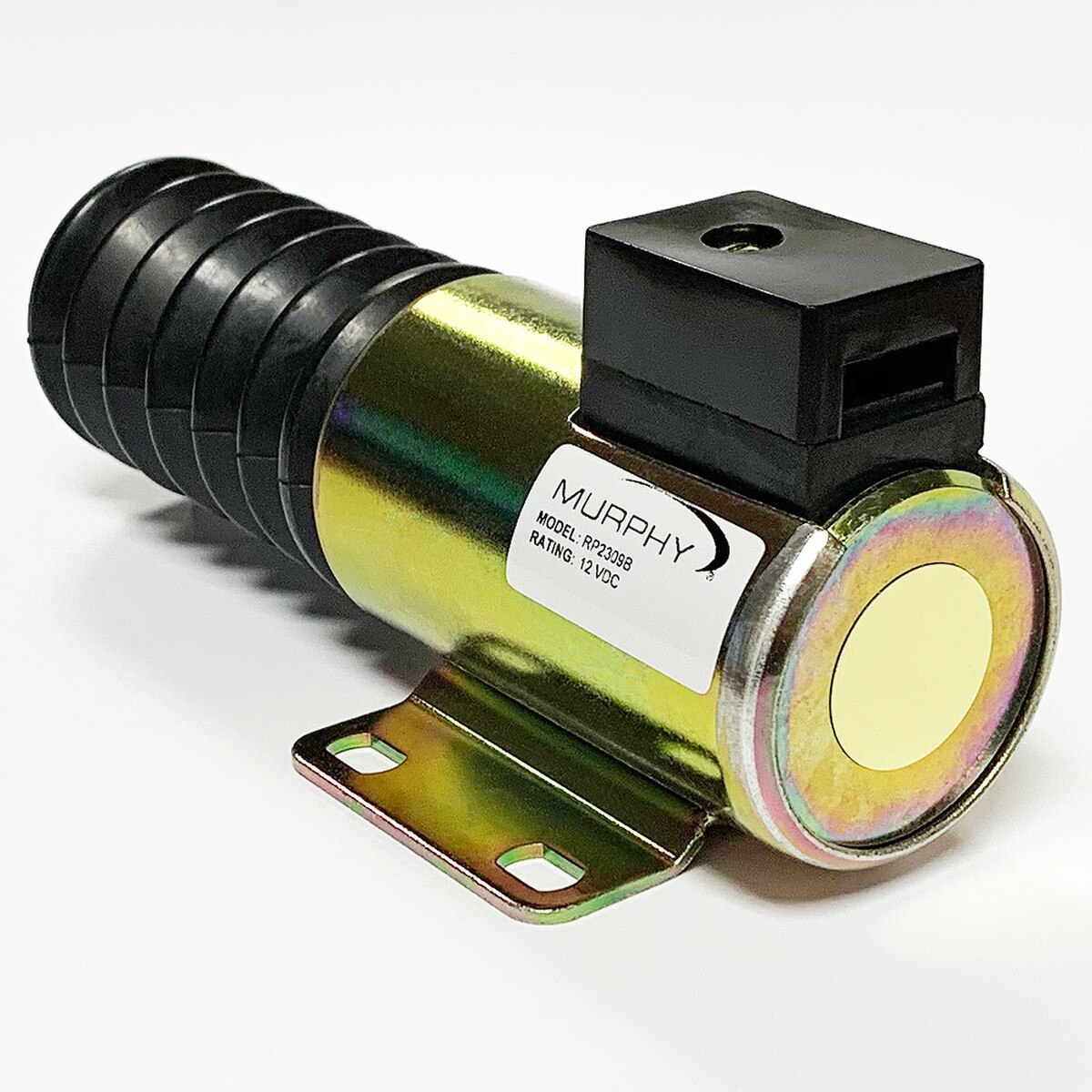

RP2309B: Push/Pull DC Solenoid; 12VDC; 1-1/2" stroke (40700094)


The Murphy RP2309B Push/Pull DC Solenoid provides single unit versatility for engine applications, such as shutdown.
This 12-volt model gives a one and a half inch (38 mm) stroke at 14 pounds (62N) and holds up to 34 pounds (151N) at full voltage, continuous duty.
The unit will operate at any stroke less than maximum, such as 1/2 or 3/4 stroke.
The RP2309B measures 7-7/32" in length with the plunger seated (coil energized), 2-7/8" in height and 3-1/8" across the base.

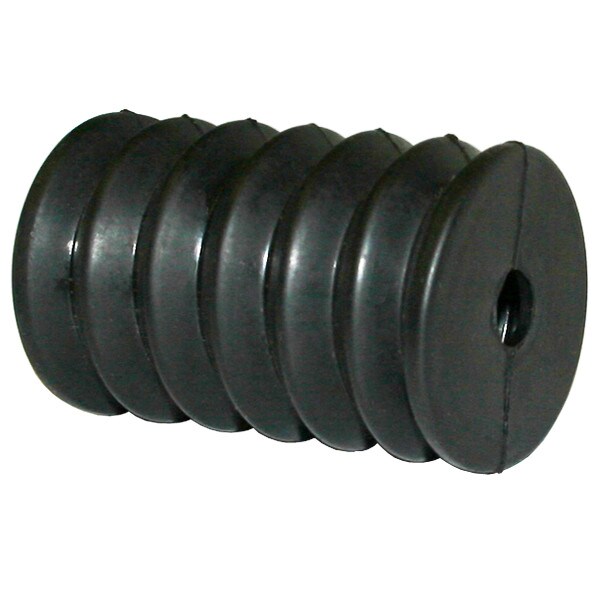

It ships complete with return spring and rubber seal boot.


Literature:

Sales Bulletin



MurCal is an Authorized Distributor of Enovation Controls products.
MurCal provides experienced application and product support, before and after the sale.
