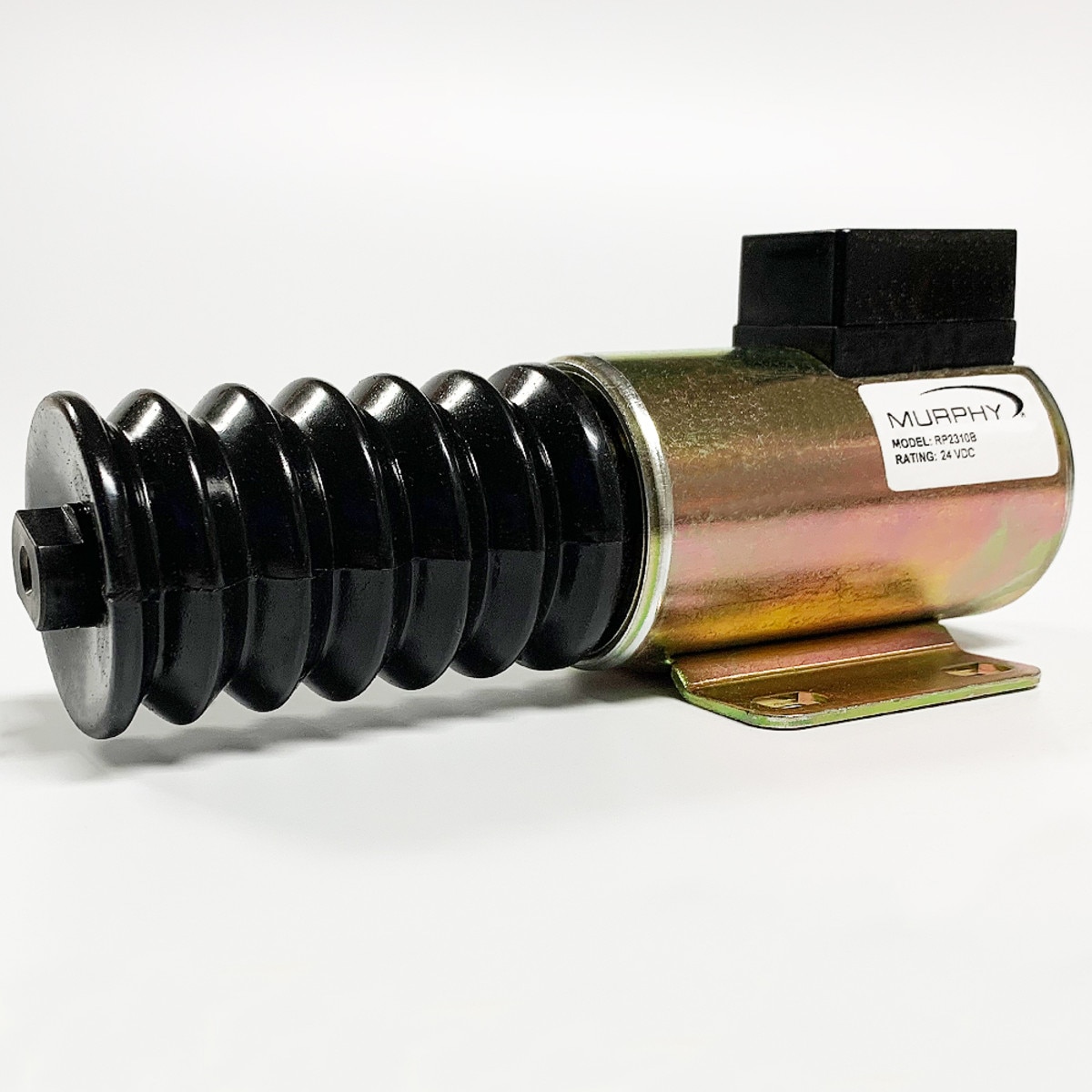

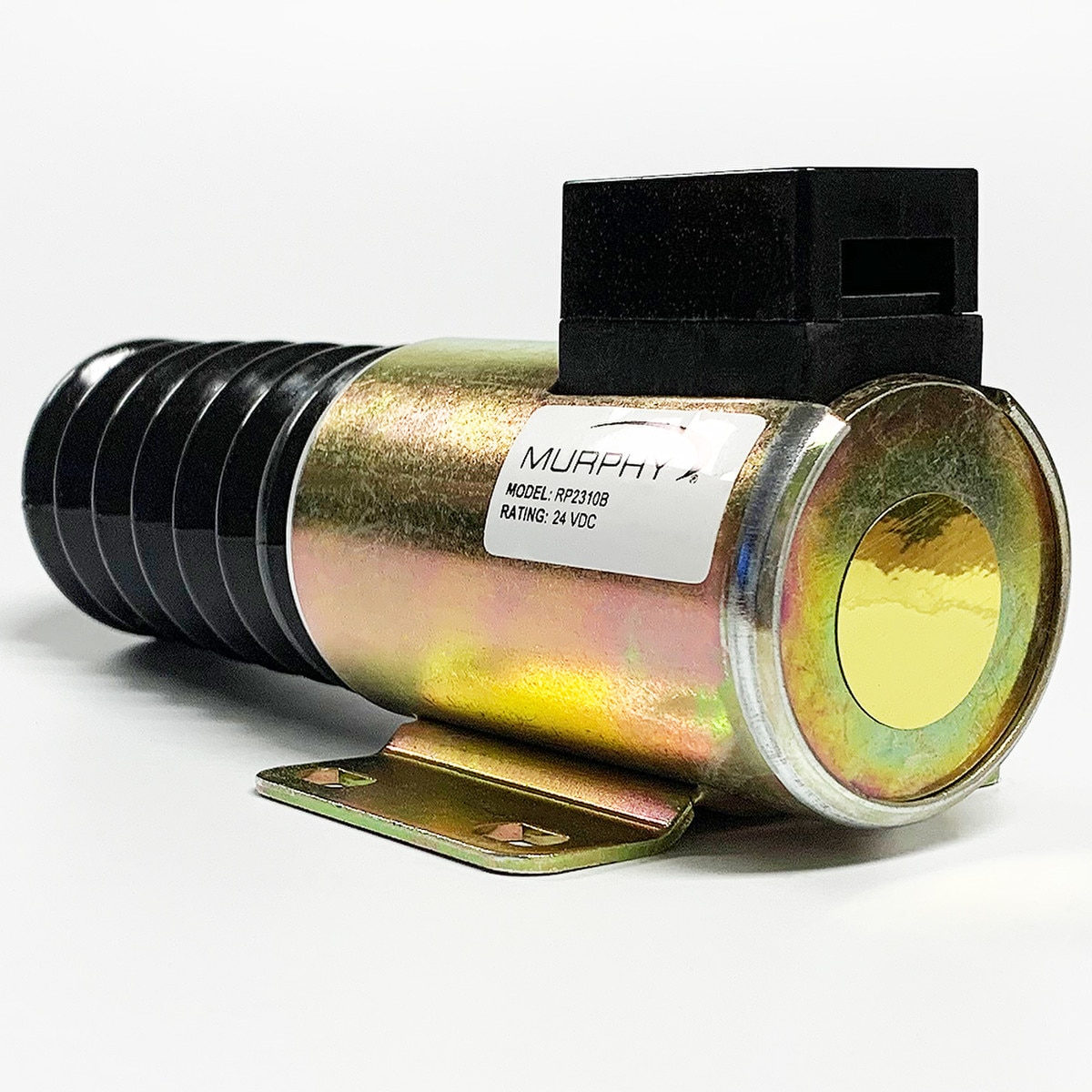

RP2310B Push/Pull DC Solenoid (40700095)
RP2310B: Push/Pull DC Solenoid; 24VDC; 1-1/2" stroke (40700095)
The Murphy RP2310B Push/Pull DC Solenoid provides single unit versatility for engine applications, such as shutdown.
This 24 volt model gives a one and a half inch (38 mm) stroke at 14 pounds (62N) and holds up to 34 pounds (151N) at full voltage, continuous duty.
The unit will operate at any stroke less than maximum, such as 1/2 or 3/4 stroke.
The RP2310B measures 7-7/32" in length with the plunger seated (coil energized), 2-7/8" in height and 3-1/8" across the base.
It ships complete with return spring and rubber seal boot.
