RP75-12 Rack Puller for Diesel Engines (40700002)
RP75-12: Rack Puller for Diesel Engines, 12 Volt (40700002)

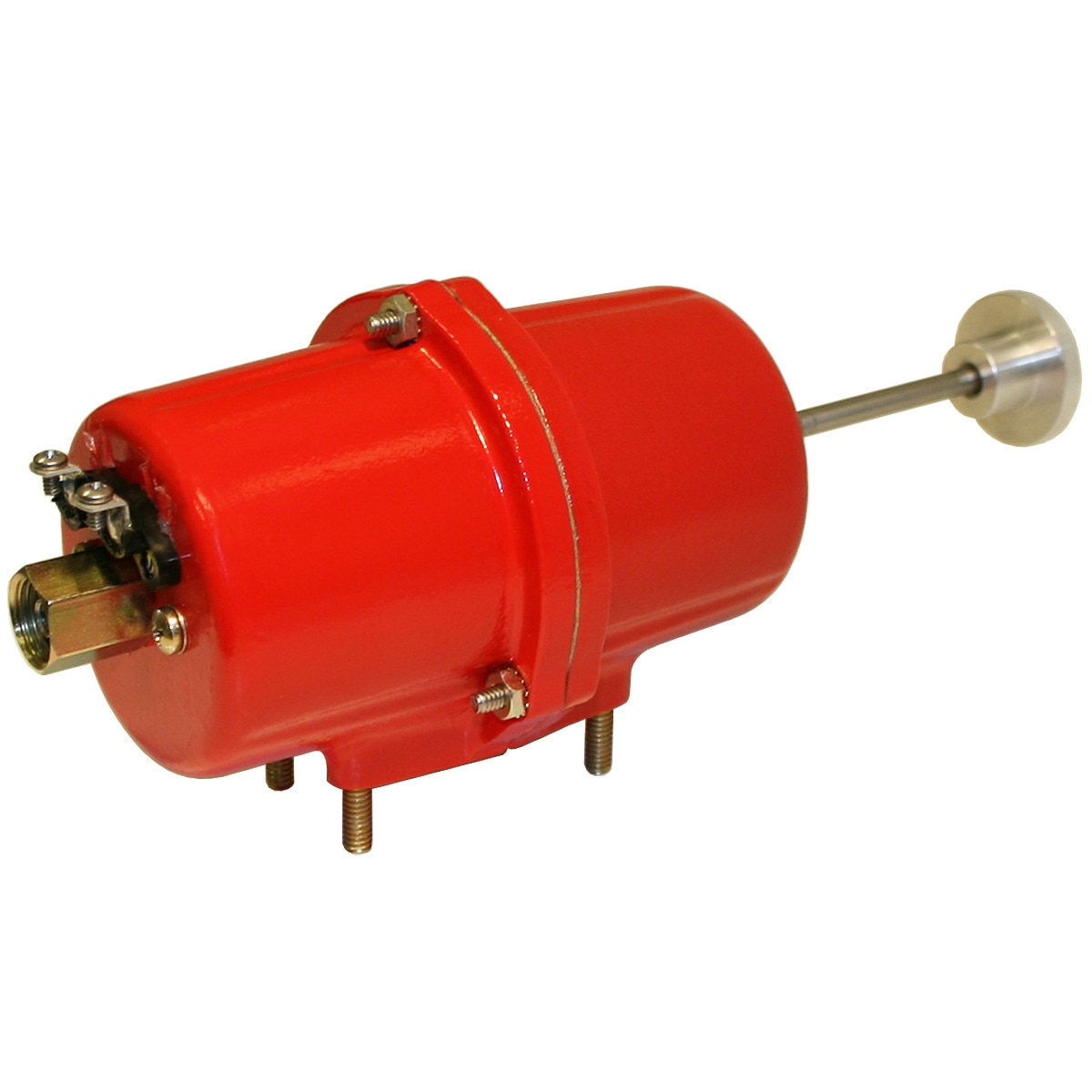

The RP75-12 Rack Puller is a 12 volt semi-automatic device that provides a pulling force to initiate shutdown of diesel engines and equipment. The RP75 connects to the injection pump or air intake shut-off lever via a cable (chain optional).

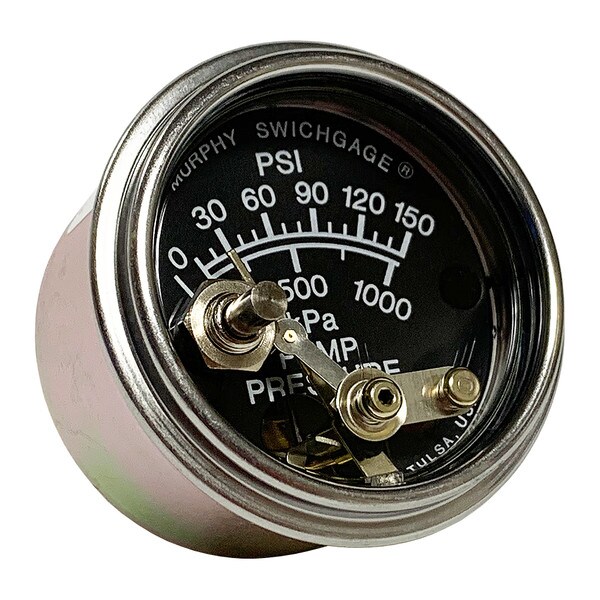

A coil spring, within the RP75, is reset manually and is held in place by an electromagnet. When the Swichgage detects a malfunction, the electromagnetic circuit is interrupted through a Magnetic Switch, which releases the coil spring that pulls the cable/chain to actuate shutdown.
The spring, when fully compressed, exerts a pull of 30 lbf (133 N).
The RP75-12 measures 10-1/4" in length and is compatible with all Swichgage instruments.
Some additional specifications:
Operating Force: 30 lbf (133N) maximum, 10 lbf (44N) minimum.
Coil Resistance: 32.2 ohms Length of Travel: 1-7/8" (48 mm).
Control Linkage: 4' (1.22 m) cable (included).
