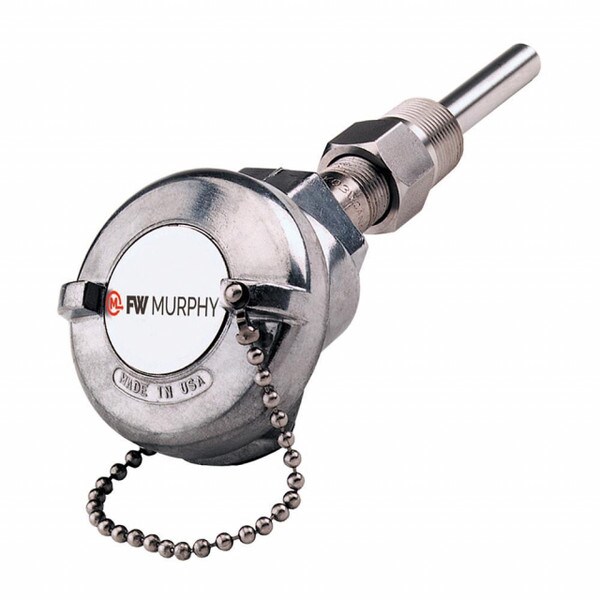

RTDT-225-400-100-EX RTD Transmitter (10706628)

(0)No Reviews yet
$646.99
SKU: RTDT-225-400-100-EX (10706628)

This item is IN STOCK

Current Stock: 3

RTDT-225-400-100-EX (10706628) - RTD Transmitters Assemblies with Thermowell, 100-ohm, Pt 4-20 mA RTD Transmitter, 1/2 NPT, 0-400oF (-17.8-204oC), 2-1/2 in. (63 mm) insertion length.
Rated for hazardous duty. Class 1 Div 2-Explosion Proof.


FW Murphy offers a highly reliable thermocouple and RTD (Resistance Temperature Detector). Its innovative features include a 304 stainless steel thermowell that provides protection to the spring-loaded element. The cast aluminum connecting head meets NEMA 4 requirements.
Supply voltage for RTDT must be within 13-40 VDC. They accept 2- or 3-wire, 100-ohm RTDs.

Literature:


Sales Bulletin


MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
