RTDT-345-400-100 RTD Transmitters Assembly with Thermowell (10704223) *SPECIAL ORDER ITEM*
RTDT-345-400-100: RTD Transmitters Assemblies with Thermowell; 3/4 NPT process thread; 4-1/2" insertion length; 0-400 degrees Fahrenheit; 100 Ohm; 4-20 mA (10704223)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———

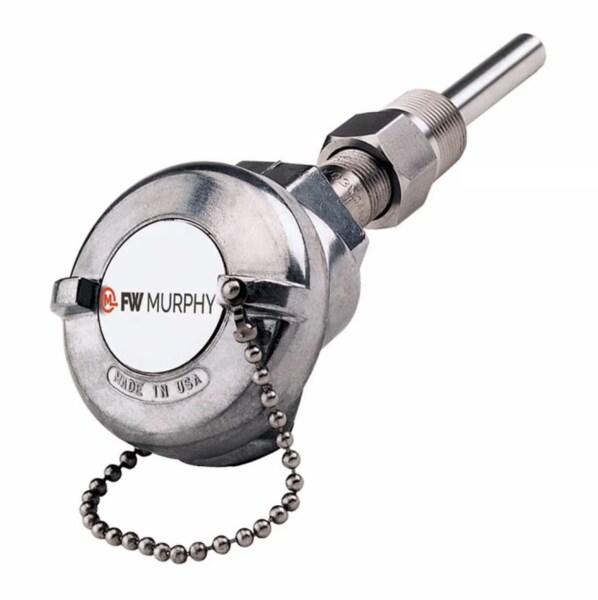

The Murphy 0-400F Resistance Temperature Detector Transmitter Assembly RTDT-345-400-100 features a 304 stainless steel thermowell that provides protection to the spring loaded element. The cast aluminum connecting head meets NEMA 4 requirements and includes an RTD transmitter. This model is available as part of the temperature sensor assemblies or as a separate units, the RTDT’s accept 2 or 3 wire, 100 ohm RTD’s. The RTD transmitters are loop powered, they feature linearized 4-20 mA DC outputs and have reversed polarity protection.
Applications: Enovation Control’s temperature sensing assemblies fit in a variety of industrial processes and applications. Their ruggedness and characteristics make these assemblies a popular and price-competitive choice.
FEATURES:
- 304 Stainless Steel Thermowell Protection
- Compatible with Digital Swichgage
- 4-20 mA DC Output RTD Transmitter
- 4-1/2 in. (114 mm) Insertion Length
Literature:
MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
