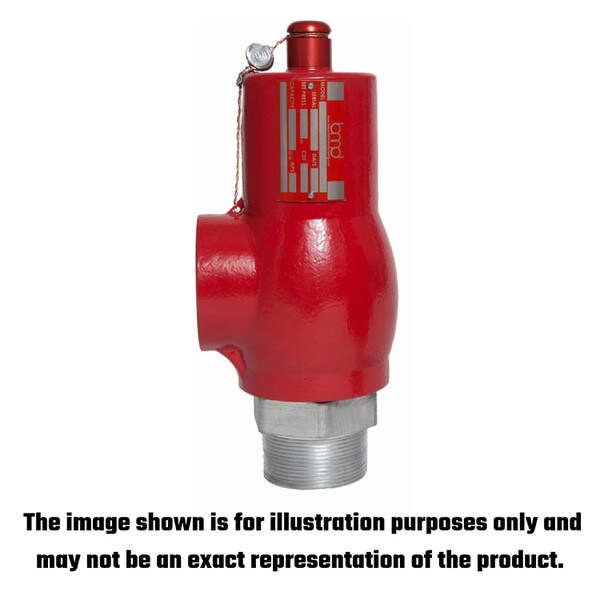

RV10 D, Flanged, 1" 300 x 2" 150, NACE, CS Body, SST Trim, 231-400 PSI X-750 (RV10-DF14-2VV-400)
bmd - RV10 D Orifice Flanged 1" 300 Inlet X 2 150 Outlet NACE CS Body/Bonnet, SST Trim, Viton Seat/Seals, 231-400 PSI, X-750 Spring (RV10-DF14-2VV-400)
The RV10 safety relief valve is well-suited for overpressure protection of production equipment, including compressors, scrubbers, separators, pipelines or anywhere overpressure protection may be required. The design incorporates a non-rising stem to give the disk full guidance while opening and closing. The nonrising stem coupled with the valve’s soft-seat design ensures long-lasting set pressure repeatability and bubble-tight shutoff. The shorter stem also makes the valve more compact, making it ideal for requirements where space may be an issue.
The RV10 is ASME certified for gas and liquid service and is available in NPT and flanged connections. Flanged sizes meet API 526 dimensions. The RV10 series covers set pressure ranges from 15-3000 psi (103-20684 kPa) with orifice sizes ranging from D to Q. Orifice sizes exceed API minimum areas for increased f low rates.
The RV10 is manufactured in accordance with the ASME Boiler and Pressure Vessel Code, capacity tested and certified by the National Board and meets the requirements of Section VIII, Division 1 of the ASME Code.
Literature:
MurCal is an Authorized Distributor of BMD products.
MurCal provides experienced application and product support, before and after the sale.
