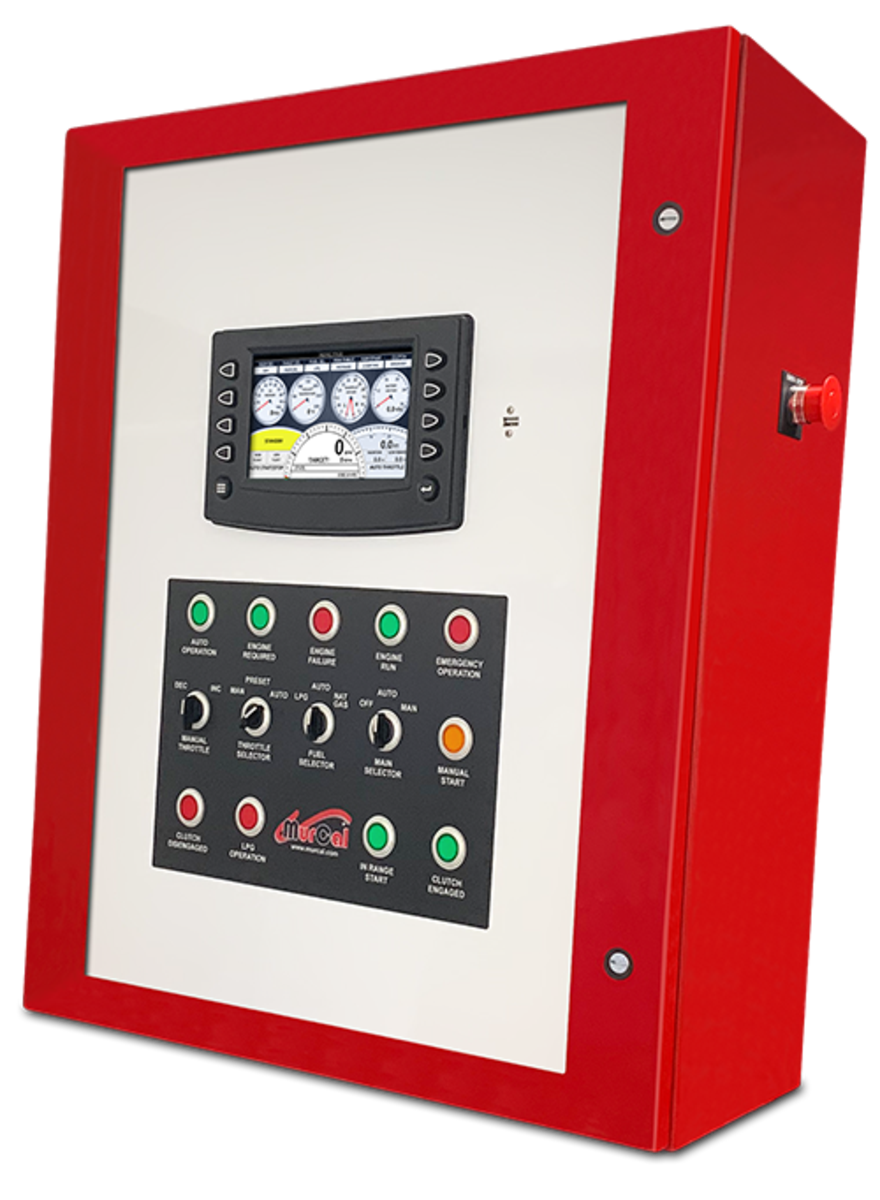

S800 Standard Diesel Engine Controller (40-16-087)

S800 Standard Diesel Engine Controller

24 VDC, Diesel, single engine controller housed in a wall mountable 30x24x10 inches enclosure with a hinged and gasketed door. Enclosure rated NEMA 4. E-Stop, MAN-OFF-AUTO selector switch, MAN-PRESET-AUTO throttle control selector, TATTLETALE®, pilot LEDs, 7" touch screen HMI

Safety shutdowns: LOP, HWT, Manifold Vacuum, H/L engine oil level, low gearhead oil pressure, H/L gearhead oil level, high gearhead oil temp, LCL, vibration, high cat temp, H/L discharge pressure, low suction pressure, overspeed, overcrank, loss of speed, throttle failure.

Basic engine automatic control features: throttle rate of increase/decrease, cycle cranking, warmup/cooldown, delay on start/stop.

Learn More about MurCal Municipal

Literature:

1. Sales Bulletin
2. Municipal Introduction Bulletin
3. S800 StartUp
4. S800 Panel Maintenance Checklist
