S800 Standard Engine Controller w/ AFR (40-16-076)

(0)No Reviews yet
$15,487.50
SKU: S800 Standard Engine Controller w/ AFR (40-16-076)

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

Details

S800 Standard Engine Controller with ECM-R-64R and TCB.

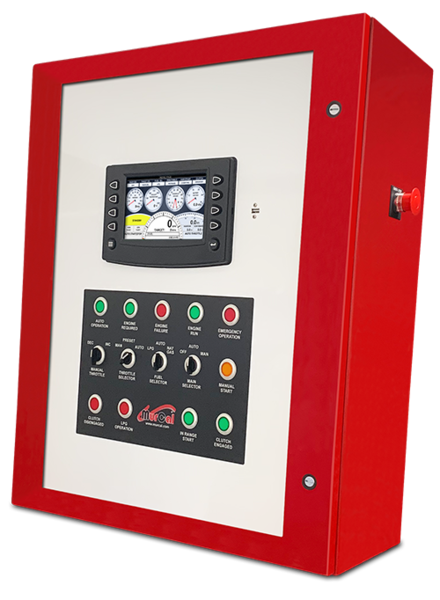

24 VDC, Nat Gas/LPG, single engine controller housed in a wall mountable 30x24x10 inches enclosure with a hinged and gasketed door. Enclosure rated NEMA 4. E-Stop, MAN-OFF-AUTO selector switch, MAN-PRESET-AUTO throttle control selector, NAT GAS-AUTO-LPG fuel selector swtich, TATTLETALE®, pilot LEDs, 7" touch screen HMI

Safety shutdowns: LOP, HWT, Manifold Vacuum, H/L engine oil level, low gearhead oil pressure, H/L gearhead oil level, high gearhead oil temp, LCL, vibration, high cat temp, H/L discharge pressure, low suction pressure, overspeed, overcrank, loss of speed, throttle failure.

Basic engine automatic control features: throttle rate of increase/decrease, cycle cranking, warmup/cooldown, delay on start/stop.


Learn More about MurCal Municipal

Literature:


  1. Sales Bulletin
  2. Municipal Introduction Bulletin
