SDB1000 Temperature Swichgage® (10701034)
SDB1000: Direct Mounting Temperature Swichgage® for exhaust gas temperature; 200-1100°F. (10701034)

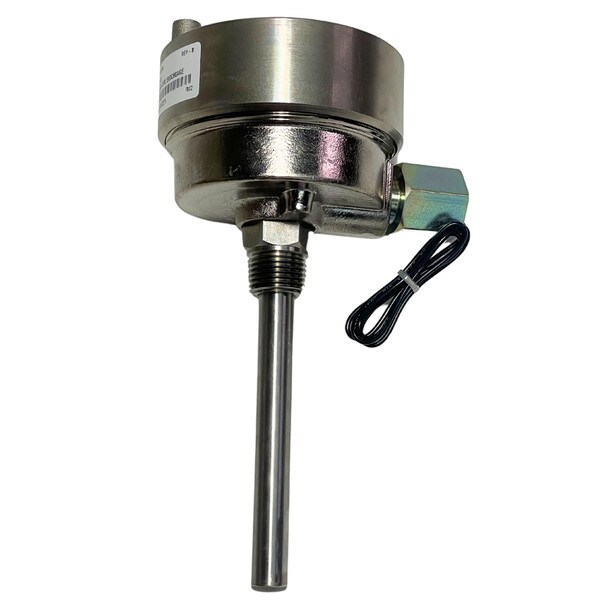

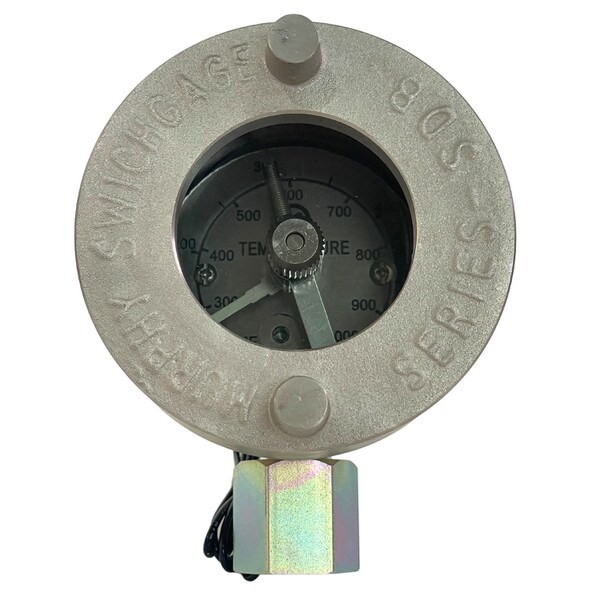

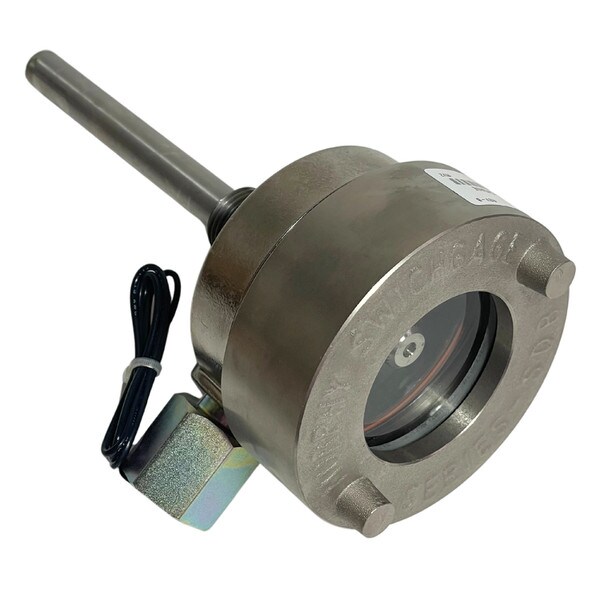

The Murphy SDB1000 is a Direct Mounting Temperature Swichgage device that provides an accurate direct-reading gauge with an adjustable limit switch to activate alarms and/or shutdown. A knob on the front of the Swichgage allows you to adjust the limit switch trip point. Pointer movement is actuated by a bi-metallic sensing element.
When the indicating pointer on the SDB1000 touches the adjustable contact, a one-wire-to-ground circuit is completed to shut down the equipment and/or actuate audible or visual alarms. Proper relays or Tattletale annunciators (magnetic switches) must be incorporated into the system.
Applications: The most common use of the SDB Series is to monitor gas compressor temperatures. Engine exhaust temperature can also be monitored to indicate over-loading or lean fuel mixtures; or use the SDB to help coordinate loads on twin-engine installations.
FEATURES:
- Easy to Read Dial
- Bi-Metallic Sensor
- 200 to 1000°F (100 to 500°C)
- Dials Scaled in Degrees Fahrenheit/Celsius
- Sand-Cast Aluminum
- Calibrated with Thermowell
Literature:
MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
