SENS MicroGenius®180 Battery Charger (M1-22-1006-DF)

(0)No Reviews yet
$1,024.50
SKU: SENS MicroGenius®180 (M1-22-1006-DF)

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

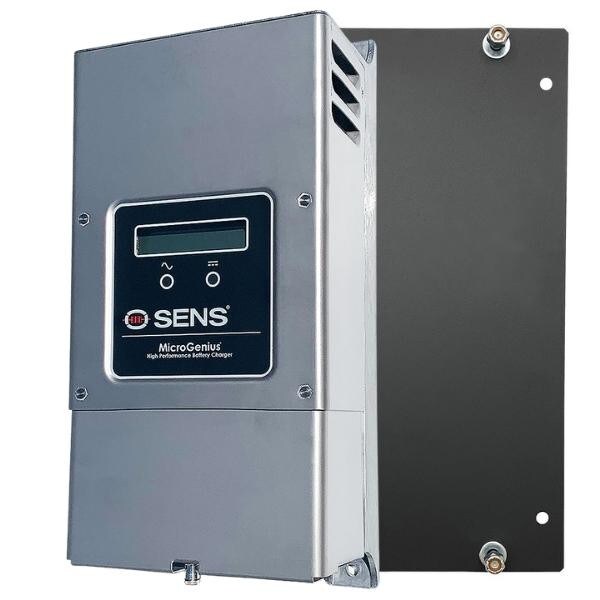

SENS MicroGenius®180 Battery Charger (M1-22-1006-DF)


The -DF suffix indicates that an optional “FC to MicroGenius 2” adapter plate is included in the box.


The M1-22-1006-DF MicroGenius® 2 is a switchmode, regulated, filtered, microprocessor-controlled, current limited battery charger designed for heavy-duty industrial service. This base model charger is packaged in a full enclosure, includes 12V and 24V output voltage, an LCD display, five (5) Form C alarm relays (30V, 2A resistive, assignable / 28 - 16 AWG), as well as J1939 and Modbus communications (RS485 on RJ-45 port). Rated: 10A @ 12V; 6A @ 24V.

This 180 Watt model is a member of the MicroGenius 2 family of advanced technology, 12/24 volt stationary battery chargers that deliver more power in less space. Rugged switchmode power conversion technology enables a rich set of standard features that are either unavailable in or add significant cost to competing legacy technology chargers. MicroGenius 2 is designed and tested to survive extreme electrical transients, temperature and vibration.

MicroGenius chargers are customized for the unique needs of industrial reserve power, marine, and engine genset starting applications.



Features:



•  Mission-Critical Dependability – SENS’ comprehensive approach to reliability includes expert engineering talent, worst-case analysis design, repeated and ongoing stress testing and highly automated assembly, test and burn-in.

•  Rich Standard Feature Set – Standard with every charger: ripple-free output, fast dynamic response, Modbus communications, multiple alarm and communications choices, battery health check systems and global standards compliance.

•  State-of-the-Art Digital Control:
    •  Patented algorithms charge batteries faster & more safely
    •  Superb energy efficiency exceeds state-mandated regulations
    •  Comms, load sharing & other features “built-in” to every unit

•  Hardened Switchmode Powertrain – Delivers first-class abuse resistance and energy efficiency.

•  Advanced Microprocessor Control – Allows advanced digital controls and communications.

•  Power Supply or Battery Charger – Perfect for sensitive electronics or applications with/without battery.

•  Two Standard Battery Check Systems – Works with both constant and intermittent loads.

•  Standard Modbus Communications – Enable easy integration with building and supervisory systems.

•  Small, Lightweight Packages – Enable installation in smaller spaces.



Literature:


MicroGenius® 2 Datasheet, Genset
MicroGenius® 2 Datasheet, Industrial Reserve Power

MicroGenius® 2 User Manual
MicroGenius® 2 Installation & Operations Manual
MicroGenius® 2 Setup Utility Operations Manual

MicroGenius® 2 Overview
MicroGenius® 2 Quick Start Guide
MicroGenius® 2 Enclosed Charger Customer Installation



MurCal is an Authorized Distributor of SENS products.
MurCal provides experienced application and product support, before and after the sale.



For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
