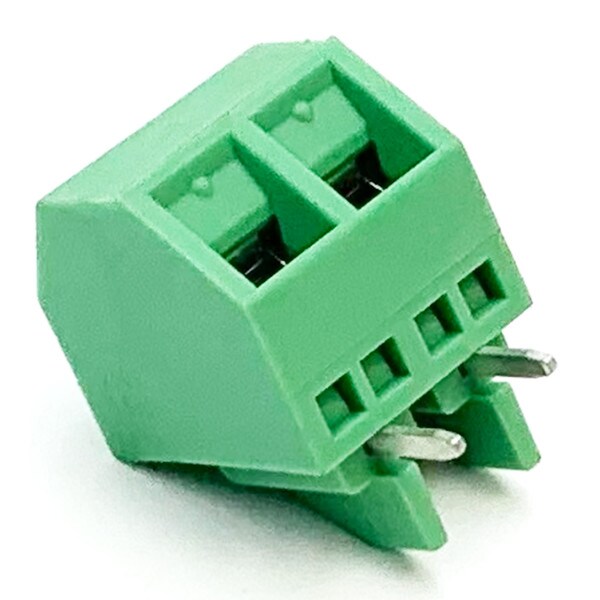

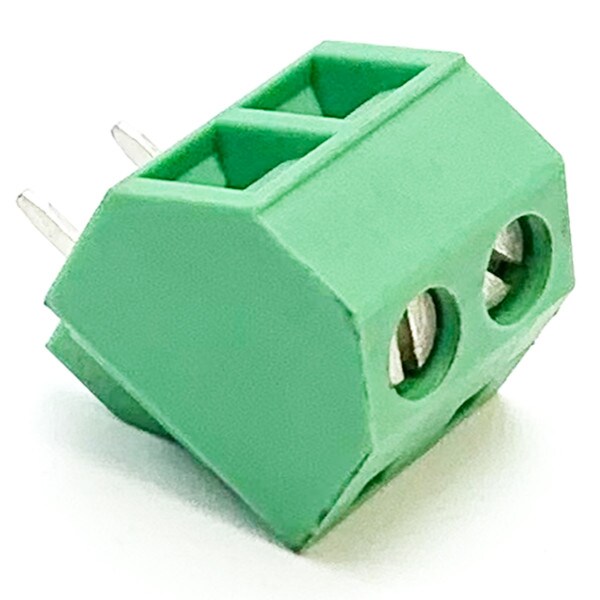

Phoenix Contact SMKDSNF1, 5/2-5, 08 PC Terminal Block
Phoenix Contact SMKDSNF1, 5/2-5, 08 PC Terminal Block
- PC terminal block,
- Nominal current: 12 A,
- Nom. voltage: 250 V,
- Pitch: 5.08 mm,
- Number of positions: 2
- Type of connection: Screw connection,
- Assembly: Soldering,
- Conductor/PCB connection direction: 325ø,
- Color: green
- Dimensions / Positions: Length: 15.8 mm
- Height: 12.0 mm
- Pitch: 5.08 mm
- Dimension a: 5.08 mm
- Number of position: 2
- Pin dimensions: 0.5 x 1 mm
- Hole diameter: 1.3 mm
- Screw thread: M3
- Tightening torque (min): 0.5 Nm
- Tightening torque (max): 0.6 Nm
- PHOENIX CONTACT ORDER # 1877481
