ST5AS -LM Tattletale® Annunciator (25700003)
ST5AS-LM: 5-Point Selectronic® Remote Alarm Tattletale® Annunciator - Less Mount (25700003)
LM = Less mounting kit
The ST Series SELECTRONIC® TATTLETALE® annunciators are a simple and inexpensive answer to your remote alarm annunciator needs.
The ST5AS is a basic model for general purpose alarms suitable for a variety of applications.

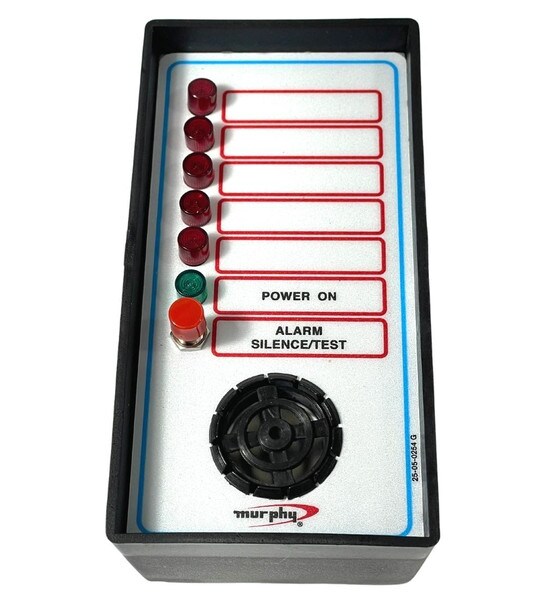

These compact TATTLETALE® annunciators tell you by a flashing LED which variable malfunctioned. The audible alarm is silenced by depressing the Alarm Silence push button, but the visual signal remains in operation until the fault is corrected and the contacts are cleared.
A test push button allows you to test all alarm LEDs. Because LEDs are solid state, cold light, electronic devices, they don’t burn out as incandescent light bulbs do.

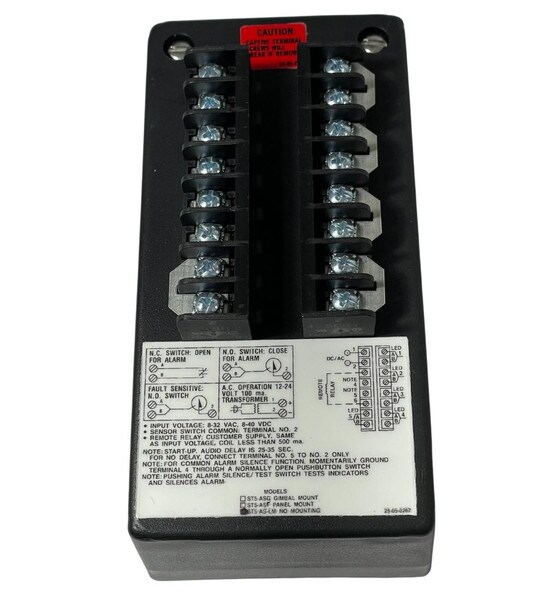

This Basic model accept 8-32 VAC or 8-40 VDC input voltage.
Preprinted peel and stick nameplates for common faults are supplied with each unit.
Typical applications are in marine pilot houses to alert the crew of problems developing in engine, gear, bilge, auxiliary power plants, etc. Repeater panels can be added for additional locations such as flybridge, on deck, galley or engineer’s quarters. Each repeater panel can be acknowledged individually, or alternate wiring allows for one master control to silence all repeater panels. Other applications include power plant control rooms or building maintenance, for remote drilling rigs, construction sites, agricultural and construction equipment.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
