ST8-F Tattletale® Annunciator (25700020)
ST8-F: 8-Point First Out Fault Selectronic® Shutdown Tattletale® Annunciator with Flange Mount included (25700020)
The ST Series SELECTRONIC® TATTLETALE® annunciators are a simple and inexpensive answer to your remote alarm annunciator needs.
Model ST8 gives first out annunciation of fault.

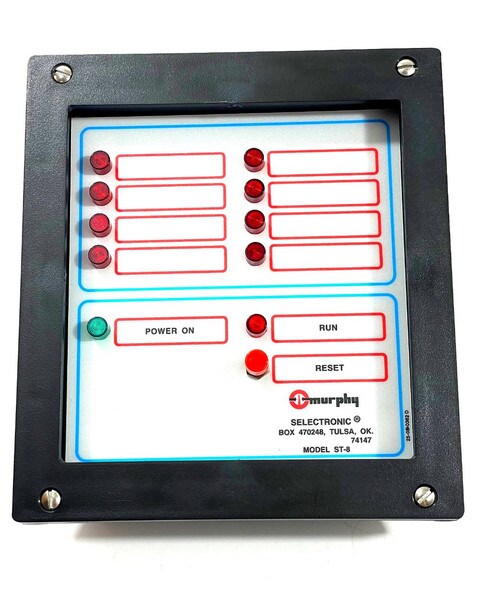

These compact TATTLETALE® annunciators tell you by a flashing LED which variable malfunctioned.
Preprinted peel and stick nameplates for common faults are supplied with each unit.
Applications include Agriculture, Construction, Marine. Generator Sets, & Oil Field.
ST8F (flange mount) provides 8-point first out cause of shutdown TATTLETALE®. A flashing LED indicates the cause of shutdown identified by the nameplate.

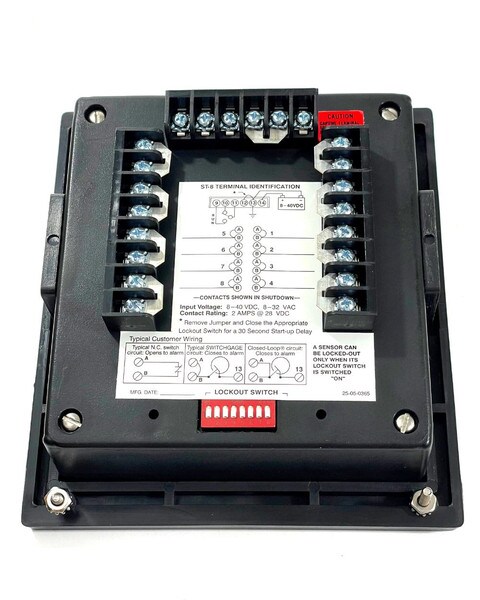

Accepts N.O. and/or N.C. contacts. Includes SPDT dry contact output rated 2 A @ 28 VDC.
Selectable sensor lockout for delay on startup. Input voltage 8-32 VAC
Literature:
- Sales Bulletin
- STAS Series: Design, Installation & Operating Manual
- Model ST8: Installation and Operating Instructions
