Stainless Five-Hole Gage Panel (30050527)
Details

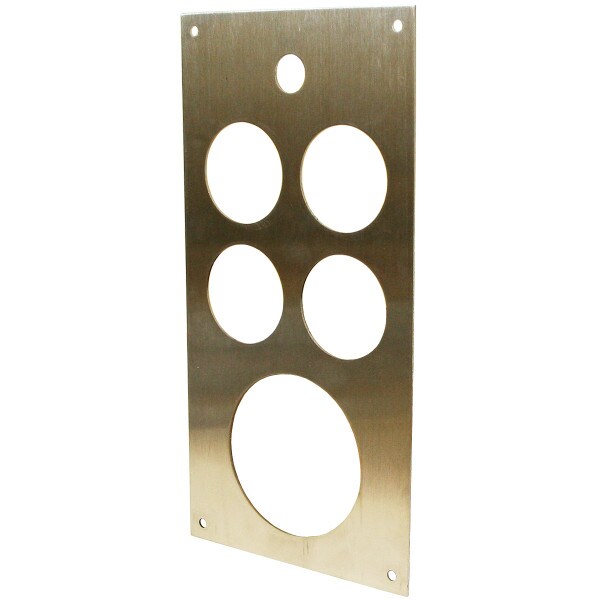

Panel 4-2" Tach ST.ST.: Stainless Steel Gage Panel with four 2" holes to mount gages plus a tachometer hole. (30050527)
This Stainless Steel Gage Panel provides four 2" holes to mount up to four standard gages. The panel also accommodates one larger gage, such as a tachometer, with a 3-3/8" (86 mm) hole centrally located toward the base of the panel. There is a sixth hole punched out near the top-center of the panel. This small hole, measuring 3/4" in diameter is used to mount a magnetic switch, button or keyswitch. This versatile panel is 11-3/8" high by 5-3/4" wide. Hole centers on the short sides are 5" apart. Hole centers on the long sides are 10-5/8" apart.
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
