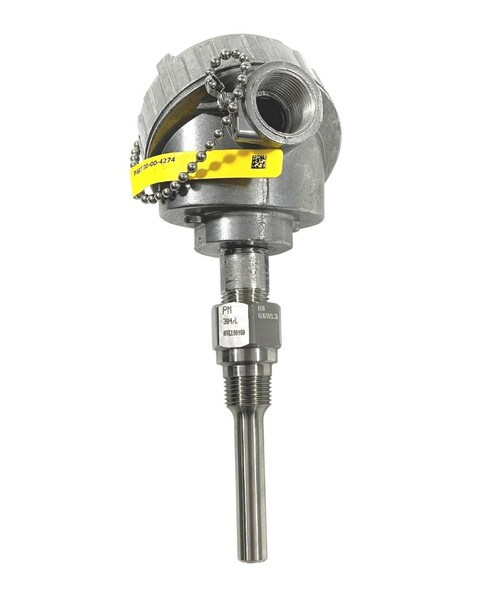

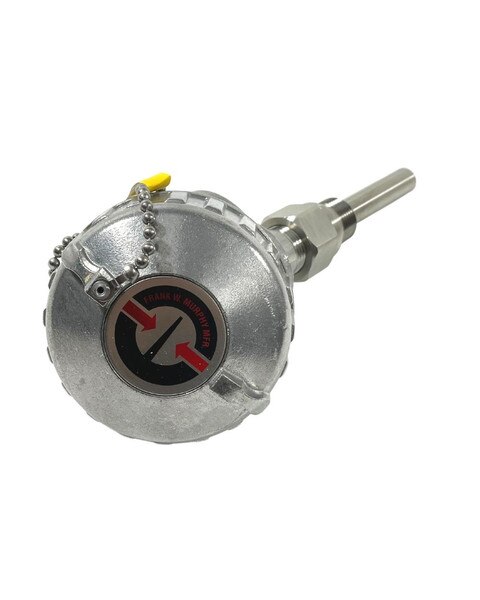

TCJ-225 Thermocouple Assembly (10704057)
TCJ-225: Thermocouple Assembly, 2.5 in. Insertion Length with Thermowell - J Type Ungrounded (10704057)
The Murphy Thermocouple Assembly TCJ-225 features a 304 stainless steel thermowell that provides protection to the spring loaded element. The cast aluminum connecting head meets NEMA 4 requirements and includes a thermocouple. The TCJ-225 has ungrounded elements in a 304 stainless steel spring loaded sheath.
Applications: Enovation Control’s temperature sensing assemblies fit in a variety of industrial processes and applications. Their ruggedness and characteristics make these assemblies a popular and price-competitive choice.
FEATURES:
- 1/2 NPT Thread
- Type J Ungrounded Thermocouple
- 304 Stainless Steel Thermowell Protection
- Compatible with Digital Swichgae
PRODUCT SPECIFICATIONS:
- Part No.: TCJ-225
- Thermowell: 304 stainless steel; 7000 psi (48.2 MPa) [482 bar] max. @ 70°F
- Connecting Head: Cast Aluminum; 400°F (204°C) maximum operating temperature
- Thermocouple: Ungrounded, Magnesium Oxide (MgO) insulated 96% purity; element sheath of 304 stainless steel
- Type “J” operating temp.: 900°F (482°C) max
- Thermocouple Accuracy (J/K): 0.5%
- Terminal block: Ceramic Steatite; thermocouples have: 4 terminals
- P Thread: 1/2 NPT
- Insertion Length: 2-1/2 in. (63 mm)
- Sensing Element Type: J Type Ungrounded Thermocouple
- Shipping Weights (listed by insertion length): 2-1/2 in. (63 mm) model: 2 lb. (0.907 kg)
- Shipping Dimensions (listed by insertion length): 12 x 7 x 5-1/2 in. (305 x 178 x 140 mm)
