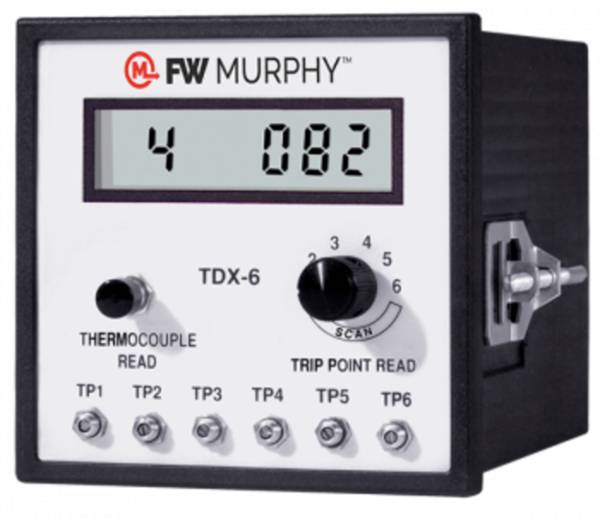

TDX6-B-F-K Temperature Scanner (10703061) *SPECIAL ORDER ITEM*
TDX6-B-F-K: Temperature Scanner; CD Ignition input; F.E.T. Pulsed Output; Display in Fahrenheit; K-Type Thermocouple (10703061)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———
The TDX6 is an advanced design six-point temperature scanner and pyrometer. It continually scans up to six thermocouples and sequentially displays the thermocouple number and its reading. Each sensor input has a field settable trip point for alarm, shutdown or control. A read/scan selector allows the operator to set and view each trip point. With the selector in the scan mode, a thermocouple read push button provides a means to manually toggle through the six channels and to lock in on a specific channel. Normal scanning will resume approximately three seconds after releasing the push button. All trip points are continually armed and active during the scanning process.
B = CD Ignition, 80-250 VDC Positive or Negative Ground or 120 VAC 50-60 Hz Inputs—F.E.T. Pulsed Outputs
F = Fahrenheit
K= Type K Thermocouple
Literature:
MurCal is an Authorized Distributor of FW Murphy products
MurCal provides experienced application and product support, before and after the sale
