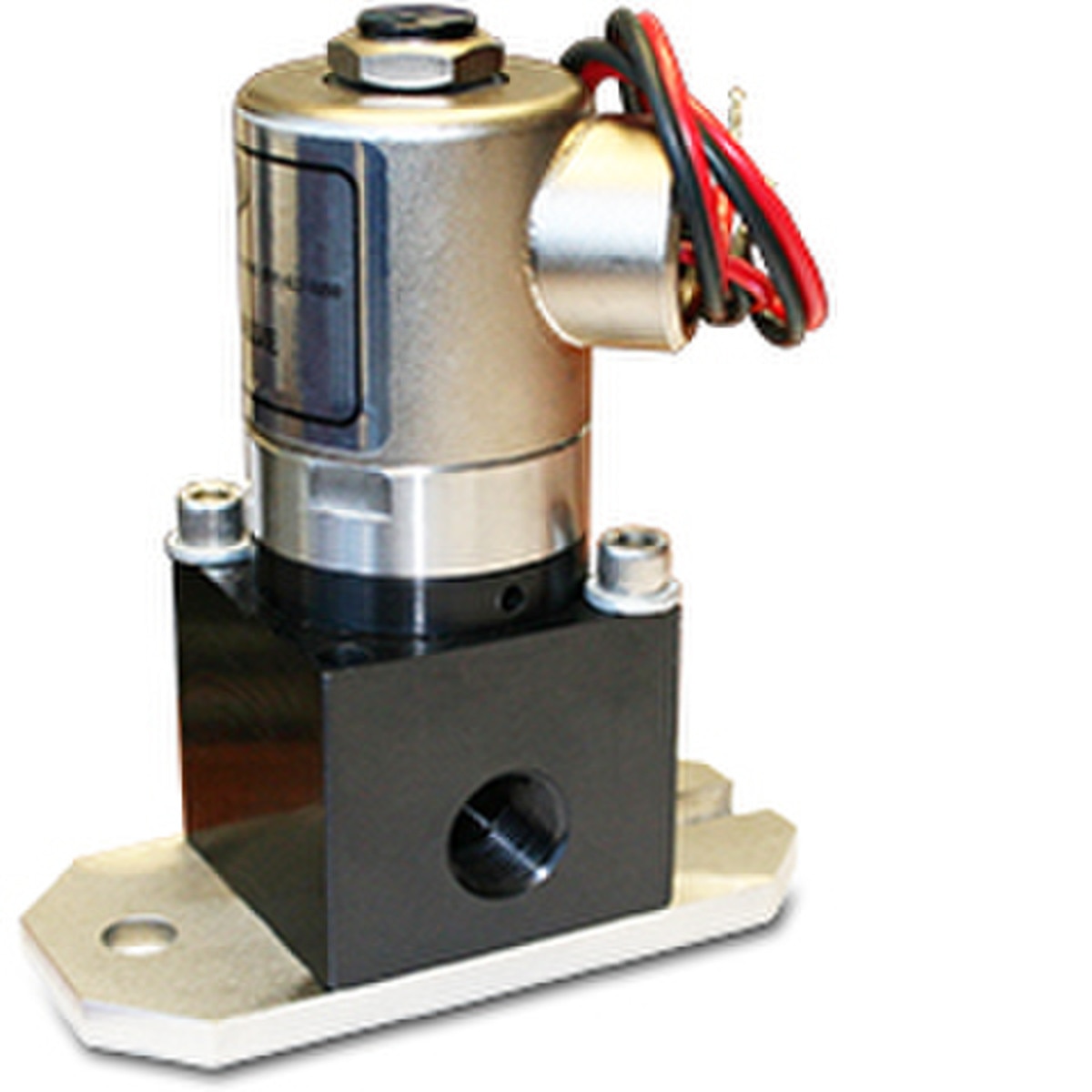

Compliance TK-6B Supplemental Trim Valve (47700324)
Details
Compliance TK-6B Supplemental Trim Valve (47700324)
The TK-6 from Compliance Controls is an electrically actuated, supplemental trim valve. It controls the air / fuel ratio by adding a small amount of fuel to the intake air stream that is independent of the carburetor.
This supplemental fuel represents up to approximately 15% of the total fuel flow to the engine. The system adjusts the fuel with the proportional solenoid vale commanded and powered from the MEC-R control module.
Pressure Range: 5 - 35 psig. Inlet /
Outlet Pipe: 3/8 - 1/2.
Orifice Size: 3/8"
