TSB-R225F/107C-3/8 Temperature Switch (10705439) *SPECIAL ORDER ITEM*
TSB-R225F/107C-3/8: Direct Mount Temperature Switch; Standard switch trip point on Rising at 225°F/107°C; (10705439)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———

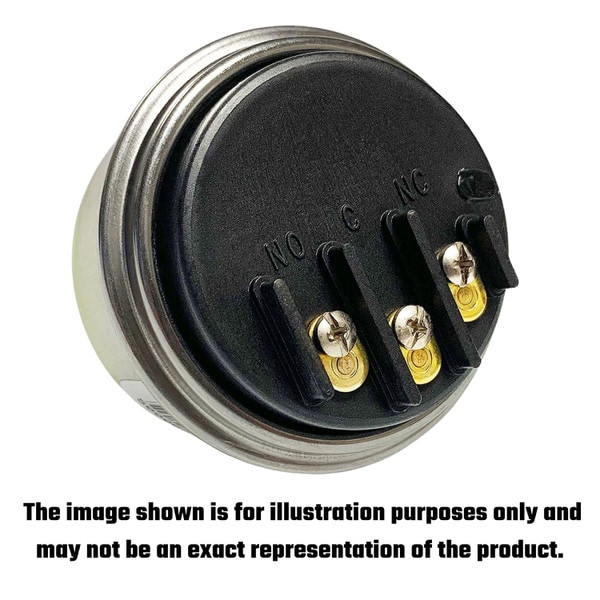

The Murphy 225F/107C Direct Mount Temperature Switch with 3/8-18 NPT Connection TSB-R225F/107C-3/8 is a direct mount switch for temperature sensing. It has one limit contact that can be used to activate an alarm, actuate indicator lights or shut down equipment. The construction of this instrument is the same as our time-proven Swichgage. A precision machined brass mounting plate and port captures a high quality stamped beryllium copper diaphragm. The single pole, double-throw (SPDT) snap switch is operated directly from the diaphragm, for quick acting and positive switching. Trip point is factory preset according to your specifications. Housing is weather sealed to prevent entry of moisture, dust, etc. A glass-filled nylon terminal block with quick-screw terminal connections gives the TSB switch a real advantage in industrial engine applications. The TSB is ideal when reading is not desired, but temperature is critical to operational efficiency. Intended for use in general purpose nonclassified areas.
Applications: Engine Coolant, Irrigation Systems, Compressors, Oil Field Systems, Engine Lubrication, Construction equipment, Mobile Equipment, Marine Engines, Generators and Electric Motors
FEATURES:
- Fits most engine applications
- SPDT snap-switch
- Activates indicator lights, alarms or shut down equipment
- Time-proven Swichgage construction
- Easy wiring terminal block
- Steel housing specially coated to resist corrosion
- Trip point is factory preset to your specifications
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
