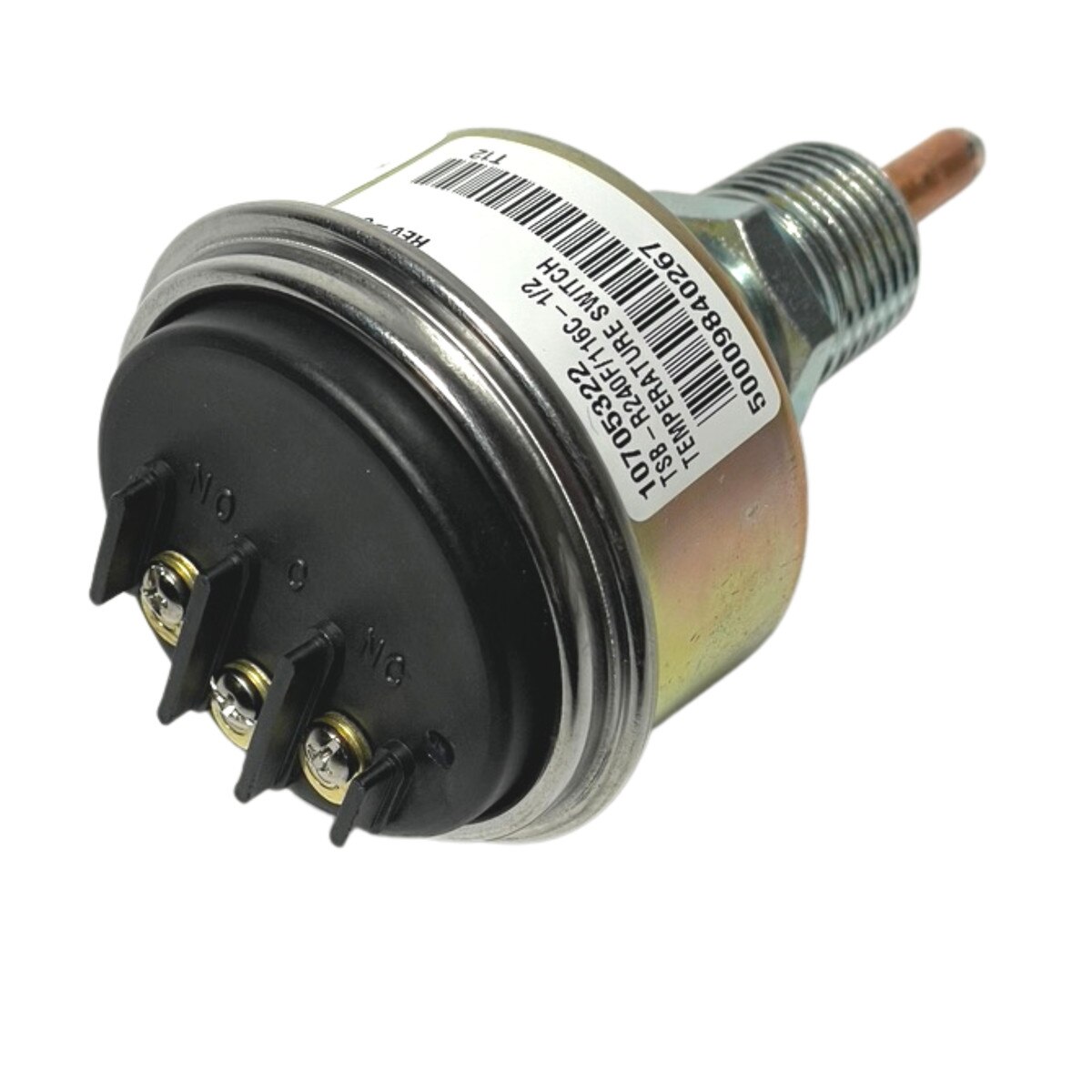

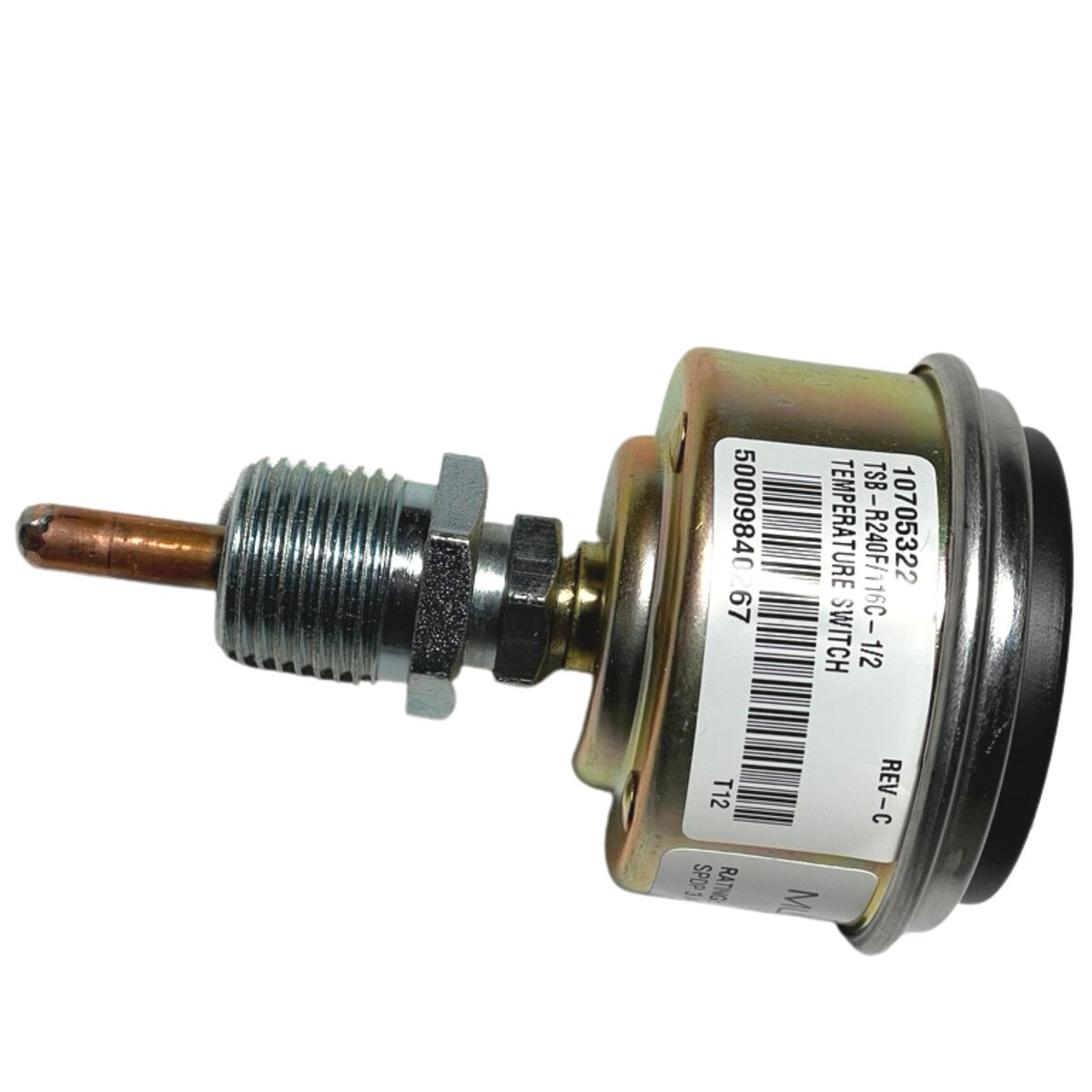

TSB-R240F/116C-1/2 Temperature Switch (10705322)

TSB-R240F/116C-1/2: Direct Mount Temperature Switch; Standard switch trip point on Rising at 240°F/116°C; 1/2-14 NPT (10705322)

The TSB switch is a direct mount switch for temperature sensing. It has one limit contact that can be used to activate an alarm, actuate indicator lights or shut down equipment. The construction of this instrument is the same as our time proven SWICHGAGE®.
A precision machined brass mounting plate and port captures a high-quality stamped beryllium copper diaphragm. The single pole, double-throw (SPDT) snap switch is operated directly from the diaphragm, for quick acting and positive switching. Trip point is factory preset according to your specifications.
Housing is weather sealed to prevent entry of moisture, dust, etc.
A glass-filled nylon terminal block with quick-screw terminal connections gives the TSB switch a real advantage in industrial engine applications. The TSB is ideal when reading is not desired, but temperature is critical to operational efficiency. Intended for use in general purpose non-classified areas.

Literature:

Sales Bulletin
