TTD-2-T-L-N Annunciator (50700946) *SPECIAL ORDER ITEM*
TTD-2-T-L-N, 48 Channel Annunciator Panel, 10-32 VDC, PSU-2, CSA Class I, Division 2, Groups B, C and D, Direct Mounted, With Tachometer with Overspeed, With Auxiliary Pre / Post Lube & No-Flow Detection (50700946)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———

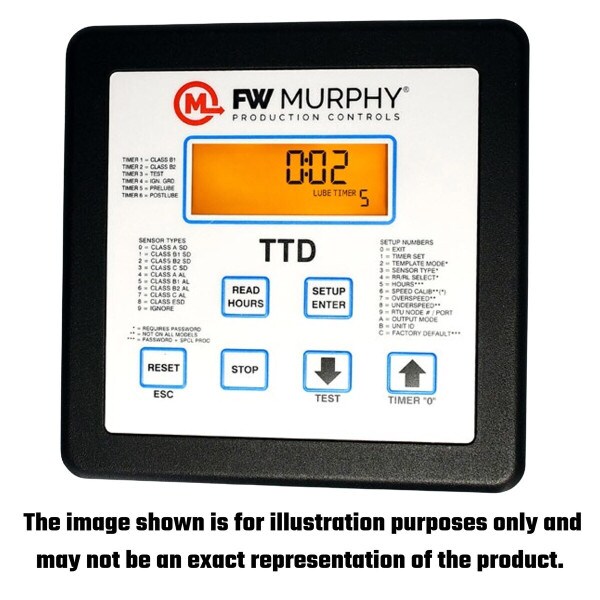

The TTD product is a solid-state fault annunciator and shut-down control system designed to protect engines, pumps, compressors and associated equipment. The TTD model accepts 48 sensor inputs from normally open and/or normally closed sensors. Each of the 48 inputs can be configured for shutdown or alarm only. Any input can be locked out by one of the two start-run timers or configured as Class C, ESD or ignore. The annunciator provides for both closing of a fuel valve and grounding of an ignition after a time delay.
With the TTD series, the display head is common to all configurations allowing fewer spare parts required to be maintained in the field. Its user-selectable templates provide ease of retrofit by selecting configuration of existing annunciators via display keypad or download from a computer with Windows-based MConfig™ installed.
Literature:
MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
