TW,1/2 ST.ST. F/Type E Bulb (10050901) *SPECIAL ORDER ITEM*

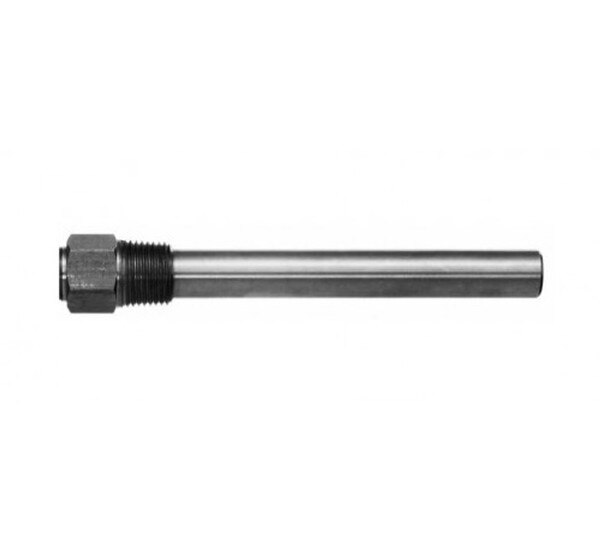

TW,1/2 ST.ST. F/Type E Bulb: Thermowell for Type E (Bulb) 304 Stainless Steel 4,000 psi (10050901)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 2 Weeks For Delivery Of This Product.
———
The Murphy Temperature Swichgage and Murphygage Thermowell 10050901 is designed for use with 20T, A20T, 25T, and A25T series temperature swichgage and murphygage models. A thermowell (separable socket) is used to facilitate maintenance of a temperature Swichgage/murphygage and to protect the temperature sensing bulb from extreme amounts of system pressure. This model is rated 4000 psi @ 300°F (276 bars @ 148°C).
PRODUCT SPECIFICATIONS:
- Part No.: 10050901
- Used with Bulb Type “E”
- Rated: 4000 psi @ 300°F (276 bars @ 148°C)
- Material: 304 Stainless Steel
- A: 4.250 in. (108 mm)
- B: 3.950 in. (100 mm)
- C: 2.968 in. (75 mm)
- D: 0.453 in. (12 mm)
- E: 0.660 in. (17 mm)
- F: 1/2-14 NPT
- G: 0.875 Hex
- H: 5/8-18 UNF-2B
Literature
