TW, 7/8 CS F/type A Bulb (10000425) *SPECIAL ORDER ITEM*

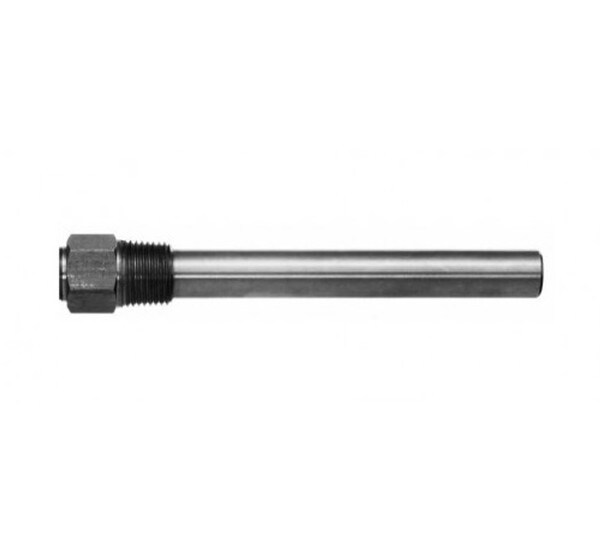

Thermowell, 7/8-9 UNC, Carbon Steel, Nickel Plate (10000425)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 6 Weeks For Delivery Of This Product.
———
The Murphy Temperature Swichgage and Murphygage Thermowell 10000425 is designed for use with 20T, A20T, 25T, and A25T series temperature swichgage and murphygage models. A thermowell (separable socket) is used to facilitate maintenance of a temperature Swichgage/murphygage and to protect the temperature sensing bulb from extreme amounts of system pressure. This model is rated 600 psi @ 250°F (41 bars @ 121°C). Recommended for engine coolant and lubrication systems.
PRODUCT SPECIFICATIONS:
- Part No.: 10000425
- Used with Bulb Type “A”
- Rated: 600 psi @ 250°F (41 bars @ 121°C)
- Material: Carbon Steel Tube and Connection
- A: 2.100 in. (53 mm)
- B: 2.053 in. (52 mm)
- C: 1.040 in. (26 mm)
- D: 0.430 in. (11 mm)
- E: 0.500 in. (13 mm)
- F: 7/8-9 UNC-2A
- G: 1.125 Hex
- H: 5/8-18 UNF-2B
Literature
Sales Bulletin
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
