Thermocouple, K Type (10051322) *SPECIAL ORDER ITEM*
Thermocouple, K Type, 1/4 Dia. Tube x 10 in. L w/50 ft. Thermocouple Extension Wire (10051322)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———

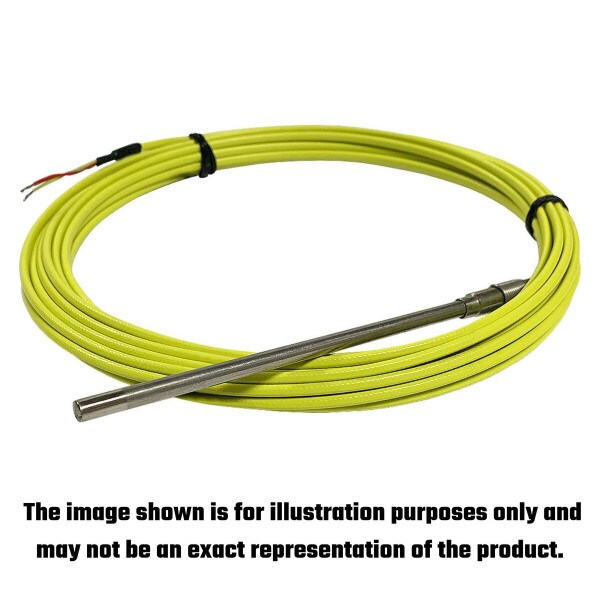

The Murphy Thermocouple Type K 10051322 is encased in a ¼″ diameter 316 stainless steel tubing sheath with stainless steel Bell Spring for strain relief. This model has 10” long ¼″ diameter probe. The thermocouple is shipped straight, but can be bent with standard tubing benders anywhere along its length to a 90° angle to minimize clearance required and help prevent damage due to personnel working on the unit. The thermocouple is tip sensitive to minimize ambient temperature influence and should be inserted between 25% and 75% of the piping inside diameter or enough to minimize any skin temperature affect on the tip of the probe when installed in vessels.
Literature
MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
