Thermocouple, Type K, 1/4 Dia. (10051396) *SPECIAL ORDER ITEM*

Thermocouple, Type K, 1/4 Dia. Tube x 10 in. L w/75 ft. Thermocouple Extension Wire (10051396)

———

*SPECIAL ORDER ITEM*
Please Allow Approx. 6 Weeks For Delivery Of This Product

———

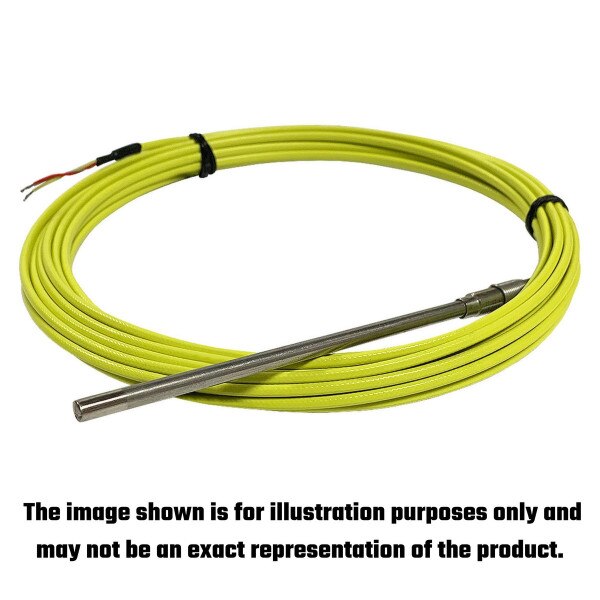

The thermocouples are encased in a 1/4 inch diameter 316 stainless steel tubing sheath with stainless steel Bell Spring for strain relief. The initial offerings are K type thermocouples with 6-inch and 10-inch long 1/4inch diameter probes. The thermocouples are shipped straight but can be bent with standard tubing benders anywhere along its length to a 90° angle to minimize clearance required and help prevent damage due to personnel working on the unit. The thermocouple is tip sensitive to minimize ambient temperature influence and should be inserted between 25% and 75% of the piping inside diameter or enough to minimize any skin temperature affect on the tip of the probe when installed in vessels.

Literature:

Sales Bulletin


MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
