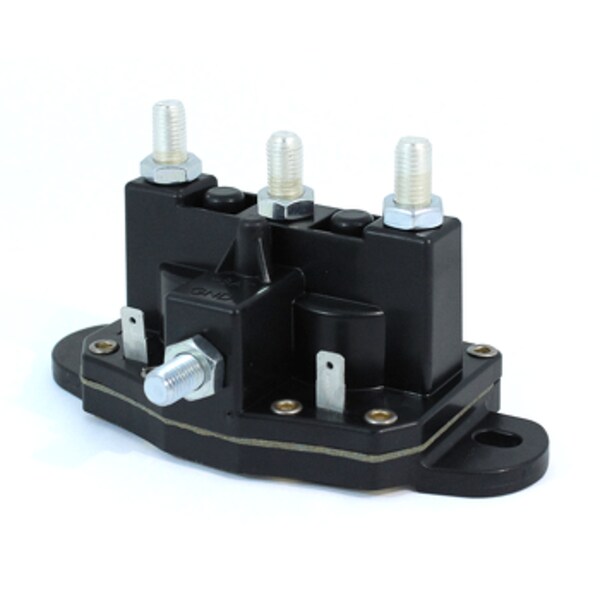

Trombetta Reversing Polarity 24V DC Contactor w/ Hose Clamp Mount Bracket (214-2411-A61-06)

(0)No Reviews yet
$42.49
SKU: Trombetta 214-2411-A61-06

This item is IN STOCK

Current Stock: 41

Reversing Polarity - 24VDC Contactor; (2) grounded coils, each with (1) 1/4" spade and a common 5/16-24 central ground; (2) 5/16-24 contact studs; 20% sustained duty (5 min. max.); silver-plated copper contacts, dust-resistant; standard molded bracket with metal bracket. (214-2411-A61-06)


Reversing Polarity DC Contactors provide a cost-effective and simple solution for reversing polarity of permanent magnet DC motors. By integrating two DC Contactors into a single housing unit, Trombetta has eliminated many costly materials and streamlined final product assembly and wire connection. The result is less assembly time, less potential for problems and more reliable performance.


The Reverse Polarity contactor can be customized to specific motors and load requirements. The RP is perfect for any application that requires reversing motion:

  • Truck winches
  • Tarp systems
  • Boatlifts
  • RV slide-outs
  • RV leveling systems

The "-06" suffix to the model number is for a different internal head spring which allows for a greater inrush.



Literature:



  1. Sales Bulletin: Reversing Polarity Family
  2. Dimensional Assembly D03508: 214 Series RP Contactor
  3. Dimensional Assembly D04139: 214 Series RP Contactor
  4. Installation Instructions: Reversing Polarity Contactor
  5. Old Part Number Conversion Chart
  6. How To Order This Part
