Trombetta 99-0810 Right Angle Splitter

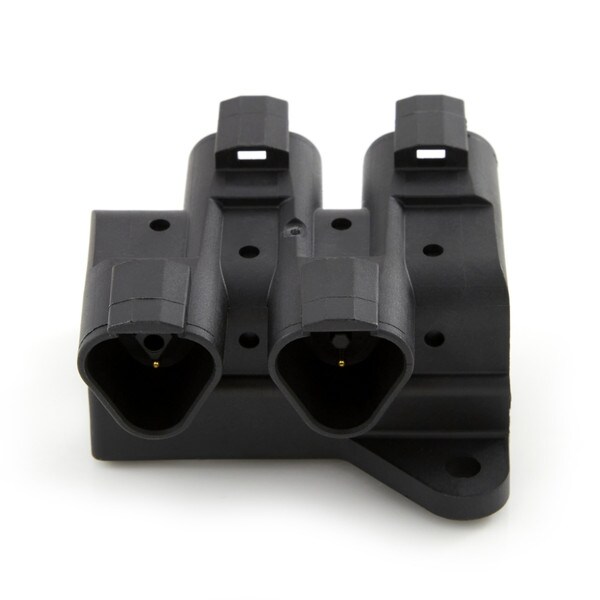

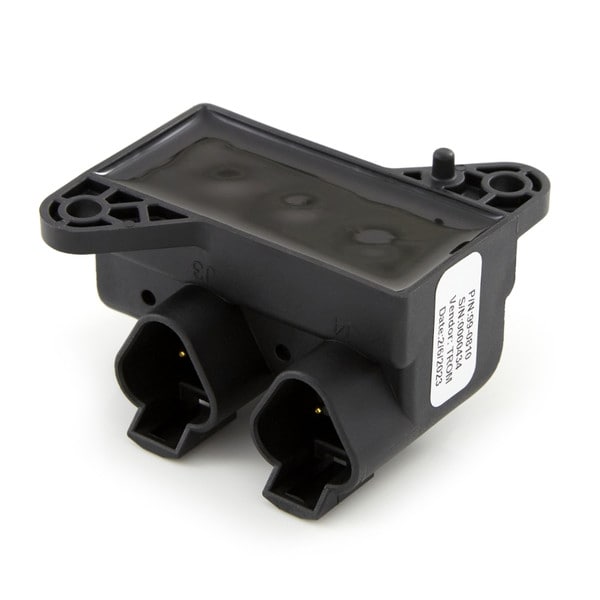

Trombetta 99-0810 J1939 4-Place J1939 CAN Bus Right Angle Splitter

CAN bus splitters provide a cost-effective and space efficient way of connecting multiple devices to the J1939 CAN bus. Modules reduce cost by eliminating Y adapters and extra harnesses typically used to provide additional connections to the bus, while at the same time allowing for shorter cable runs to each device.

J1939 CAN bus splitters are rugged and field proven with AT/DT connectors designed to meet SAE requirements for CAN applications linking ECUs for serial data communications

Features:

• Effective way of connecting multiple devices to the SAE J1939 CAN bus
• These blocks reduce your wiring efforts by minimizing the need for spider web harnesses
• Reduces bus connections
• Environmentally sealed potting for true IP67 rating
• Compact, efficient design
• Gold-plated pins for your communication equipment
• Operating Temperature: -40°F (-40°C) to 125°F (85°C)


Literature:

Sales Bulletin



MurCal is an Authorized Distributor of Trombetta products.
MurCal provides experienced application and product support, before and after the sale.
