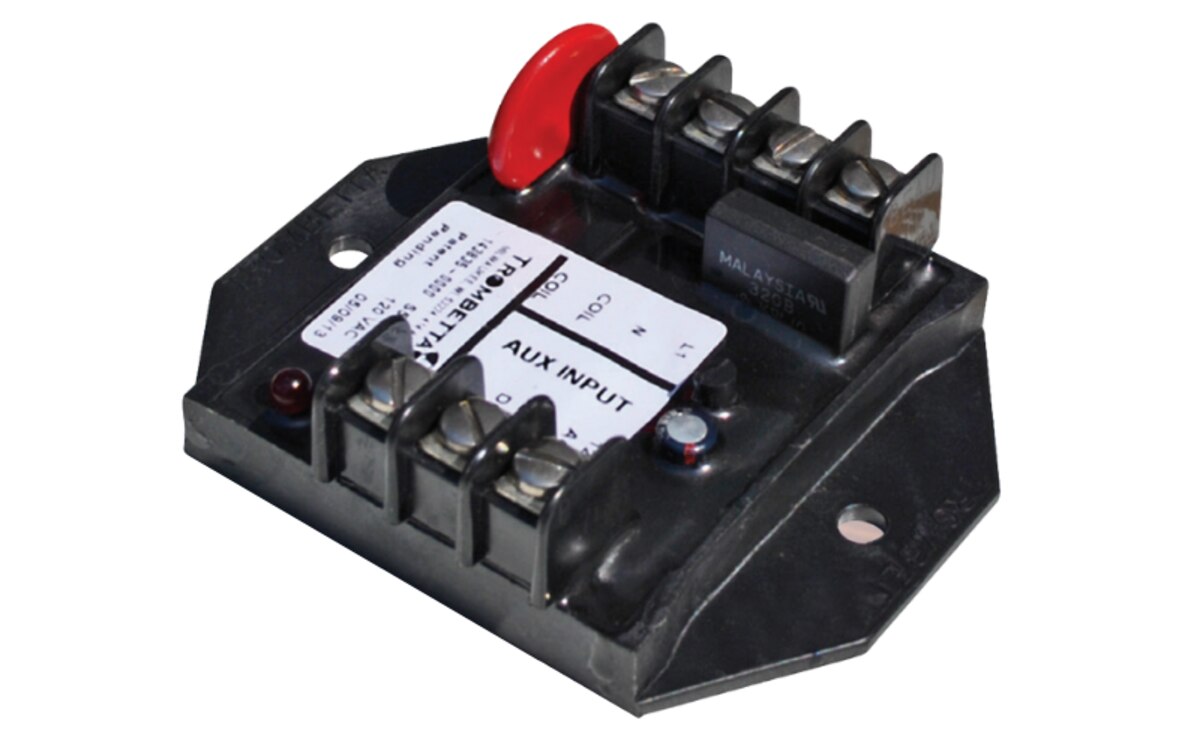

Trombetta Electronic Control Module S500-A325
Trombetta Electronic Control Module S500-A325
Trombetta’s electronic controls are special modules designed to enhance solenoid performance by increasing force capability and reducing operating temperature. Trombetta’s electronic controls for solenoids regulate the magnitude of electrical drive applied to the coil during the pull in and/or hold operation of the solenoid to optimize the performance of the solenoid
With the S500-A325 module has been designed to work properly with a (1) section coil. The module operates in the following manner. When a remote-control signal is applied to the Aux input of the module it applies full voltage to the solenoid coil. After the actuation time (approximately 2.50 seconds) the module reduces the output voltage to the solenoid to 13% to 16% of the input voltage for continuous duty. This reduced voltage level is applied to the coil until the control signal is removed. This Trombetta module gives you the option of using AC or DC voltage for the Aux trigger signal. This module also offers an LED display. The LED will display if the module is in the pull or hold mode and will indicate lower power cut off since the last trigger request
Literature:
