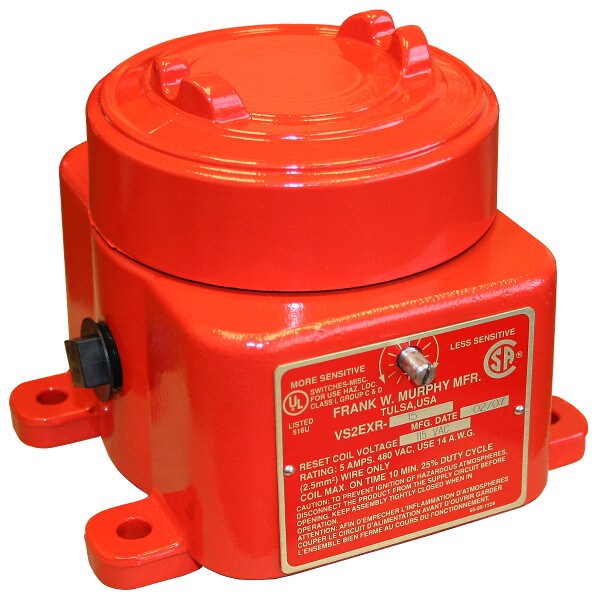

VS2EXR-15 Explosion-Proof Vibration Switch (20700053)
VS2EXR-15: 115 VAC Explosion-Proof Vibration Switch w/ remote reset (20700053)
The VS2EXR-15 switch is a shock sensitive mechanism for shutdown of engine or electric motor powered equipment. This switch uses a magnetic latch to ensure reliable operation.
This model features a 115 VAC remote reset coil.
The VS2EXR-15 has a base mounted case, explosion-proof aluminum alloy housing; meets NEMA 7/IP50 specifications; Class I, Division I, Groups C & D; UL and CSA listed with 480 VAC rating. In place of the leaf-type contacts, 2-SPDT snap-switches are used in this model. Sensitivity is externally adjustable and, when tripped, the VS2EXR-15 gives a Tattletale indication on the reset button.
Ideal for use on engines, pumps, compressors, heat exchangers and pumping units - the VS2EXR-15 can be used anywhere shutdown protection from damaging shock/vibration is desired. Switches are field adjustable to sensitivity required in each application.
Literature:
