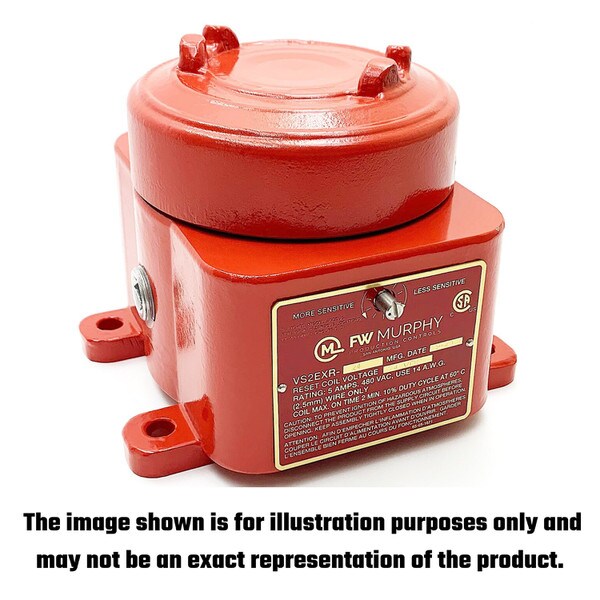

VS2EXR-24-LC Shock and Vibration Switch (20700082)
VS2EXR-24-LC Shock and Vibration Switch, Remote Reset Operation, 24 VDC, Less Case (20700082)
The VS2 Series switches are shock sensitive mechanisms for shutdown of engine or electric motor powered equipment. These adjustable magnetic shock switches have a wide range and use a magnetic latch to ensure reliable operation.
Ideal for use on engines, pumps, compressors, heat exchangers and pumping units - the VS2 can be used anywhere shutdown protection from damaging shock/vibration is desired. Switches are field adjustable to sensitivity required in each application. MurCal can provide a certificate of conformance for the VS2.
Certification: CSA, UL
Snap switch: 1-SPDT snap switch and reset coil; 5A @ 480 VAC; 2A resistive, 1A inductive, up to 30 VDC
Remote Reset: 24 VDC Shipping Weight: 5 lb. 8 oz. (2.2 kg) Shipping Dimensions: 8-1/4 x 9-1/4 x 5 in. (210 x 235 x 127 mm)
Literature:
MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
