VS94-H15-T15 Shock and Vibration Switch (20700066) *SPECIAL ORDER ITEM*
VS94-H15-T15: Shock and Vibration Control Switch; 115 VAC space heater + 115 VAC time delay/remote reset (20700066)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———

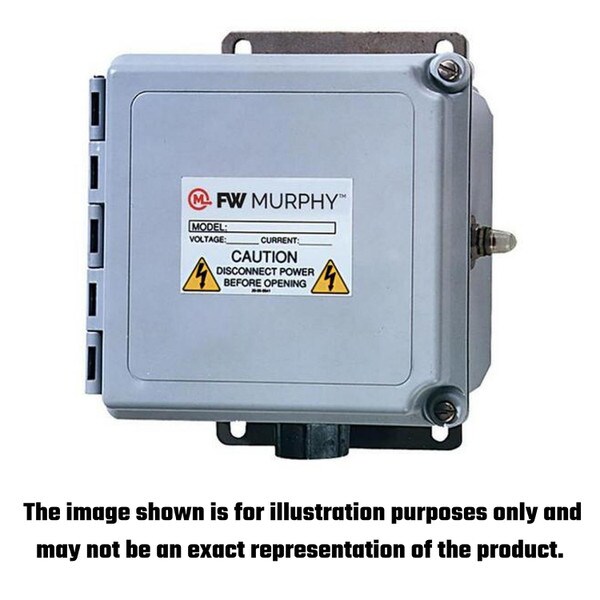

The Murphy Shock and Vibration Control Switch 115 VAC with Space Heater and Time Delay VS94-H15-T15 is an electro-mechanical device designed to protect equipment from damaging shock or vibration. This sensitive mechanism can detect excessive shock or vibration and shutdown the equipment before further damage occurs. A set of contacts is held in a latched position through a magnetic latch mechanism. As the level of shock or vibration increases an inertia mass exerts force against the latch arm and forces it away from the magnetic latch causing the latch arm to separate and to operate the contacts. Sensitivity is obtained by adjusting the amount of air gap between the magnet and latch arm plate.
The VS94 is housed in a NEMA 4/4X glass filled polyester enclosure and has a base mount. It is for applications in non-hazardous locations. It is rated up to 480 VAC. Applications for the VS94 include all stationary types of machinery or equipment where excessive shock/vibration can be damaging or poses a threat to normal operations such as in: Cooling fans, Engines, Pump jacks, Compressors, Pumps and Rotating and Reciprocating Machinery.
FEATURES:
- Manual Reset
- Electromechanical Design
- Reliable Magnetic Latch Feature
- Micro Fine, Easy-to-Adjust Sensitivity Adjustment
- NEMA 4X/IP66 Enclosure (CSA Types 4 & 12)
- Two (2) versatile SPDT snap-switches rated up to 480 VAC
- Protects Your Equipment from Excessive Shock or Vibration
- Space Heater to Prevent Moisture
- Time Delay to Override Trip Operation at Start-up
