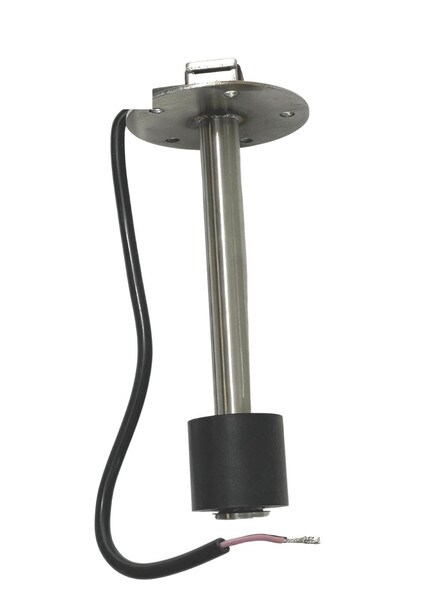

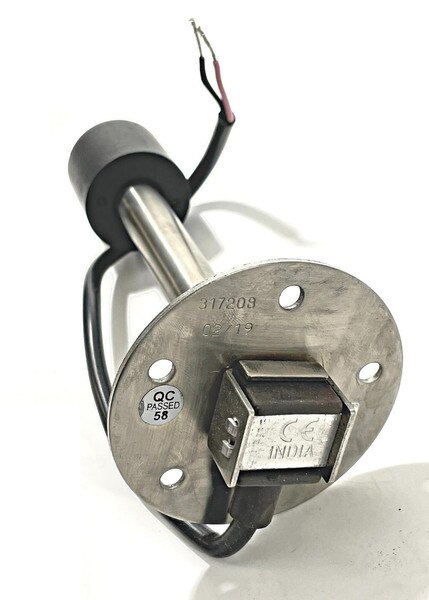

Veethree, Fuel Sensor (317208) - Reed switch Fuel Sender 6" 240-33OHMS

(0)No Reviews yet
$40.30
SKU: Veethree, Reed Fuel Sensor (317208)

This item is IN STOCK

Current Stock: 8

Veethree, Fuel Sensor (317208) - Reed Switch Fuel Sender 6" 240-33OHMS


The sender is compatible with a variety of fuel types and fluids, including gasoline, diesel, oil and hydraulic fluids. The sender body is made up of durable stainless steel and has a longer life compared to resistive card fuel senders which are directly exposed to the fuel. We also supply an installation kit with the fuel sender.
The reed switch sending unit collects fuel information more consistently than float arm senders. This is done by a series of reed switches positioned inside the sealed level tube. A float with built in magnets then triggers the reed relays generating a resistance with an ohm value that increases or decreases. The float is the only moving part of the sensors, thereby minimizing potential mechanical failures and maximizing flexibility of installation in tanks with baffles.

Suitable for both 12V and 24V gauge
Material: Stainless Steel (SUS 316)
Length: 6″ (152.4mm) This is the length of the tube below the top flange

Mounting Method: SAE 5-hole pattern
Output Signal: 240-33 ohms



Literature:



Reed switch sender drawing
