W0168-SS 24V Swichgage® Shutdown Panel Kit (30700010)
W0168-SS (30700010): 24V Swichgage® Shutdown Panel Kit

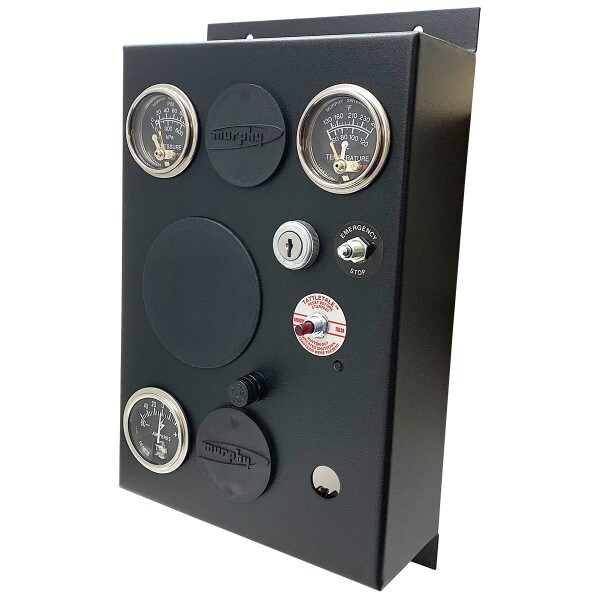

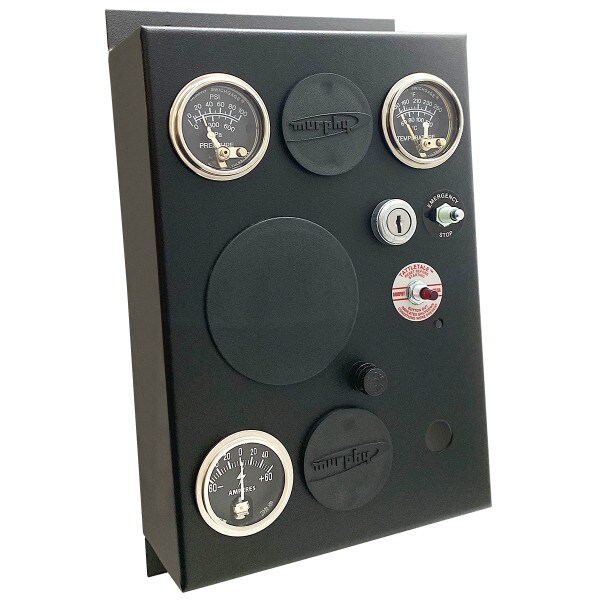

The W0168-SS Swichgage® Shutdown Panel Kit is a 24-volt universal-fit instrument panel for industrial engines.

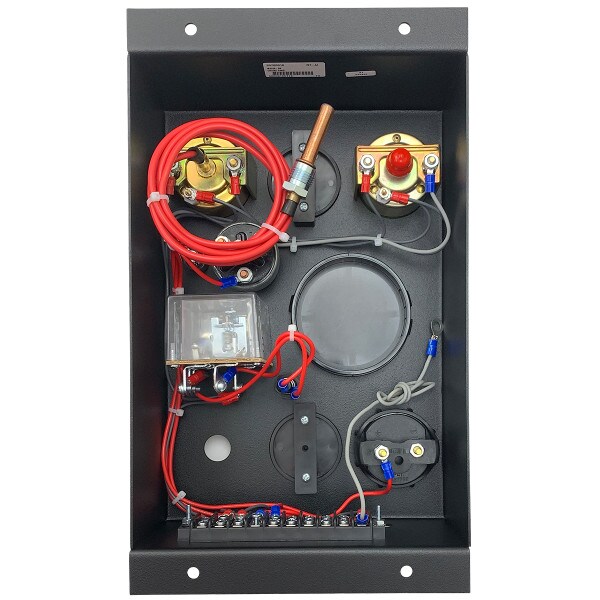

The panel includes Swichgage® protection for low engine oil pressure and high coolant/oil temperature. The universal mounting panel is enclosed on all 4 sides with an open back. Panel kits are pre-wired and ready to install.
A 518PH-24 Magnetic Switch provides a 'closed loop' circuit to ensure proper operation at all times. The 518PH-24 allows the system to be sensitive to open circuits, broken wires, false grounds, corrosion, loss of power and other factors which could otherwise prevent the protective controls from operating. This 24 Volt Magnetic Switch can be wired to either make or break a circuit for shutdown.

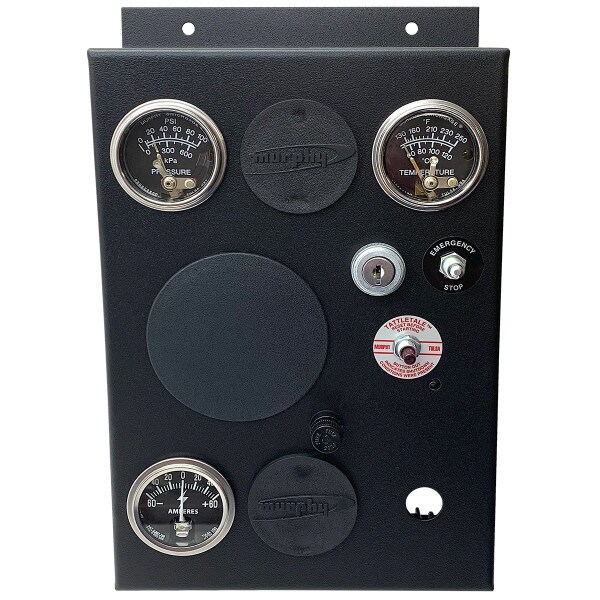

The panel includes:
- Low Lube Oil Pressure Swichgage®: 0-100 psi (0-689 kPa) [0-6.89 bar]; 1/8 NPT process connection.
- High Coolant/Oil Temperature Swichgage®: 130-250˚F (54-121˚C); 48 inch (1.2 m) capillary; 1/2 NPT process connection.
- 518PH-24 Magnetic Switch: 24 volt.
- Ammeter: 60-0-60
- PB128S Emergency stop button; ignition key switch for start/stop; provisions for additional Swichgage® controls, such as irrigation pump pressure or engine oil temperature; provisions for tachometer and throttle cable.
