WAI2 Swichgage® Shutdown Panel (30700018) *SPECIAL ORDER ITEM*
WAI2: Swichgage® Shutdown Panel ; enclosed easy-mount panel; engine oil pressure and coolant temp swichgages, 12 VDC for Mobile Equipment (30700018)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———

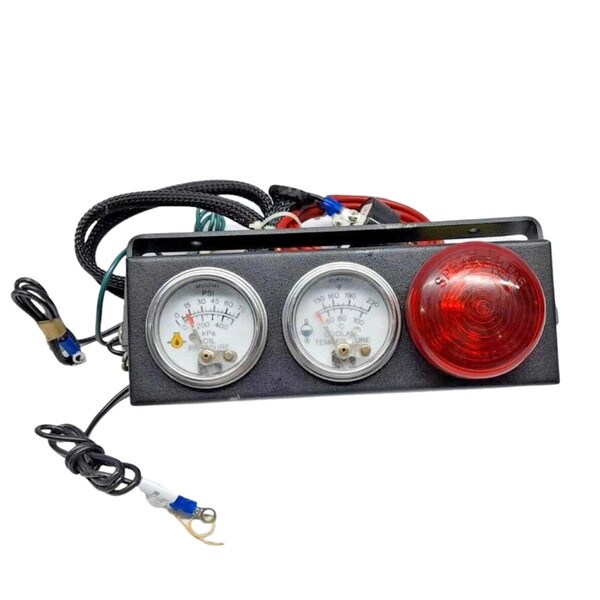

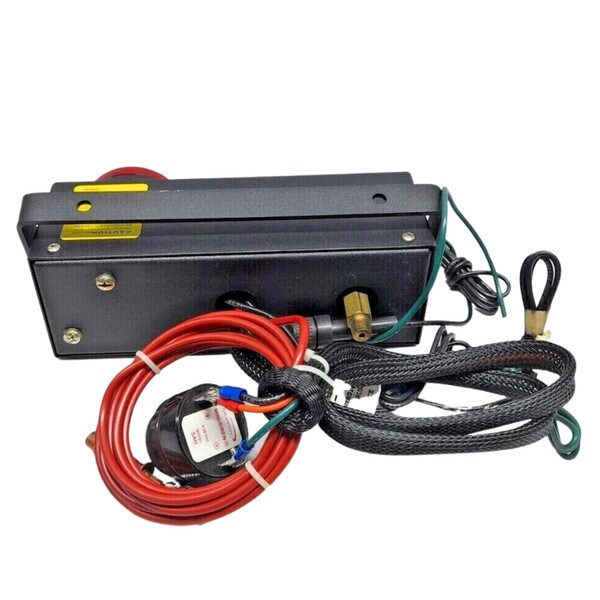

The Murphy Swichgage Shutdown Panel for Mobile Equipment WAI-2 offers engine protection for on and off road mobile equipment. You get accurate engine readings and time delayed automatic shutdowns. Flashing light and mini-siren signal a warning before the shutdown. Alarm-only panels (without shutdown capabilities) are also available. This panel is easy to install and function test without the need for expensive auxiliary equipment. Each is a cost competitive and effective system for engine protection. Completely enclosed and with convenient under-dash mounting provides Swichgage instruments for low oil pressure and high coolant temperature; visual and audible alarms before automatic shutdown. Includes a 270°pivoting, mounting bracket.
The WAI Series Panels are complete diagnostic, engine-protection systems. Any vehicle or engine can be monitored and in case of potentially damaging conditions an alarm will operate before the engine is shut down. WAI Panels feature direct-reading, mechanical Swichgage instruments (gauge and limit switch in one) and Selectronic relays and alarms. Swichgage instruments are internally lighted for night illumination.
Application: Trucks, buses, fork lifts, loaders, earthmovers– any engine powered mobile unit, such as delivery vans, farm and construction equipment, street sweepers.
PRODUCT SPECIFICATIONS:
- Part No.: WAI-2
- Enclosed Panel
- Oil Pressure Swichgage instrument
- Coolant Temperature* Swichgage instrument
- Mini-siren
- FL3/TL2 flasher and light
- 760AF Magnetic Switch with 30 second time delay for alarm before shutdown;
- 12 VDC, (optional 24 V)
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
