Murphy WD300-12 Swichgage® Shutdown Panel (30700013)

(0)No Reviews yet
$539.49
SKU: WD300-12 (30700013)

Currently out of stock, but do not worry! You can still place your order. We will process and ship your item promptly once it arrives from the manufacturer. For precise availability and estimated lead times, please contact our customer support team at sales@murcal.com

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

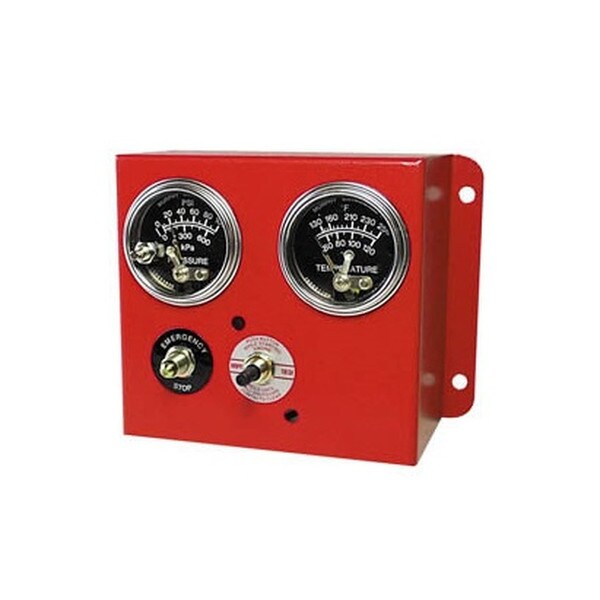

Murphy WD300-12 Swichgage® Shutdown Panel (30700013)

The Murphy Swichgage Shutdown Panel 12V with SV Fuel Valve WD300-12 is the ideal control solution for a wide variety of diesel engines without shutdown solenoid in the injection pump.
The standard WD300 panel includes basic engine protection for low oil pressure and high coolant temperature. It also includes Murphy’s SV Series solenoid fuel shut-off valve.

FEATURES:

  • Includes Fuel Solenoid Shutdown Valve
  • Swichgage Instruments for Low Oil Pressure, High Coolant Temperature
  • Universal Design Ideal for Diesel Engines Without Fuel Solenoid Built Into the Injection Pump

PRODUCT SPECIFICATIONS:

  • Part No.: WD300-12
  • Low Lube Oil Pressure Swichgage: 0-100 psi (0-689 kPa) [0-6.89 bar] • 1/8 NPT process connection
  • High Coolant High Coolant: 130-250°F (54-121°C) • 48 in. (1.2 m) capillary • 1/2 NPT process connection
  • 117PH Magnetic Switch
  • SV Series Solenoid Fuel Shutoff Valve: 12 volt
  • Shipping Weight: 8 lbs. 8 ozs. (3.9 kgs.)
  • Shipping Dimensions: 8.5 x 5.25 x 5.5 in. (216 x 133 x 140 mm)
  • Panel Kit Includes: Low Lube Oil Pressure Swichgage •High Coolant/ Temperature Swichgage • 117PH Magnetic Switch • SV Series Solenoid Fuel Shutoff Valve • PB128S Emergency Stop Push Button



Literature:

  1. Sales Bulletin
  2. Installation Instructions



MurCal is an Authorized Distributor of Murphy by Enovation products
MurCal provides experienced application and product support, before and after the sale
