WE0168-VM Electric gage Panel (30700859)
WE0168-VM: W0168 Electric gage Panel-12V, with voltmeter, not ammeter (30700859)

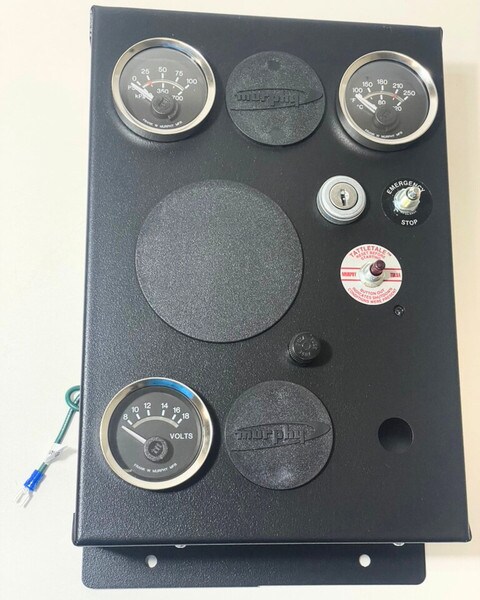

The WE0168 Swichgage® Shutdown Panel Kit is a 12-volt universal-fit instrument panel for industrial engines. The panel includes Swichgage® protection for low engine oil pressure and high coolant/oil temperature.

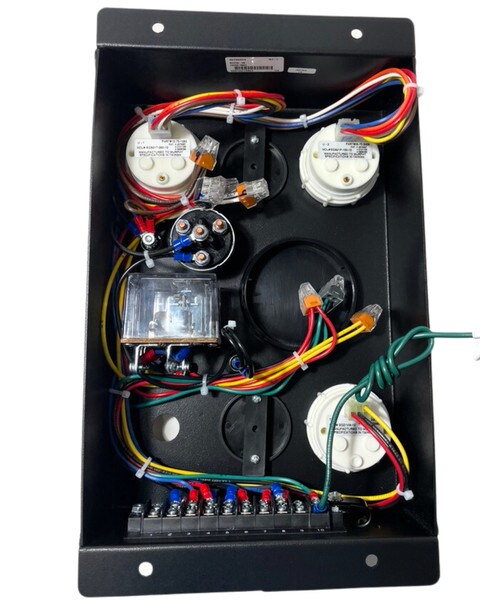

The universal mounting panel is enclosed on all 4 sides with an open back. Panel kits are pre-wired and ready to install. A 518PH Magnetic Switch provides a 'closed loop' circuit to ensure proper operation at all times.
The 518PH allows the system to be sensitive to open circuits, broken wires, false grounds, corrosion, loss of power and other factors which could otherwise prevent the protective controls from operating. It can be wired to either make or break a circuit for shutdown.
Low Lube Oil Pressure Swichgage®: 0-100 psi (0-689 kPa) [0-6.89 bar]; 1/8 NPT process connection.
High Coolant/Oil Temperature Swichgage®: 130-250˚F (54-121˚C); 48-inch (1.2 m) capillary; 1/2
NPT process connection.
518PH Magnetic Switch: 12 volt.
Voltmeter
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
