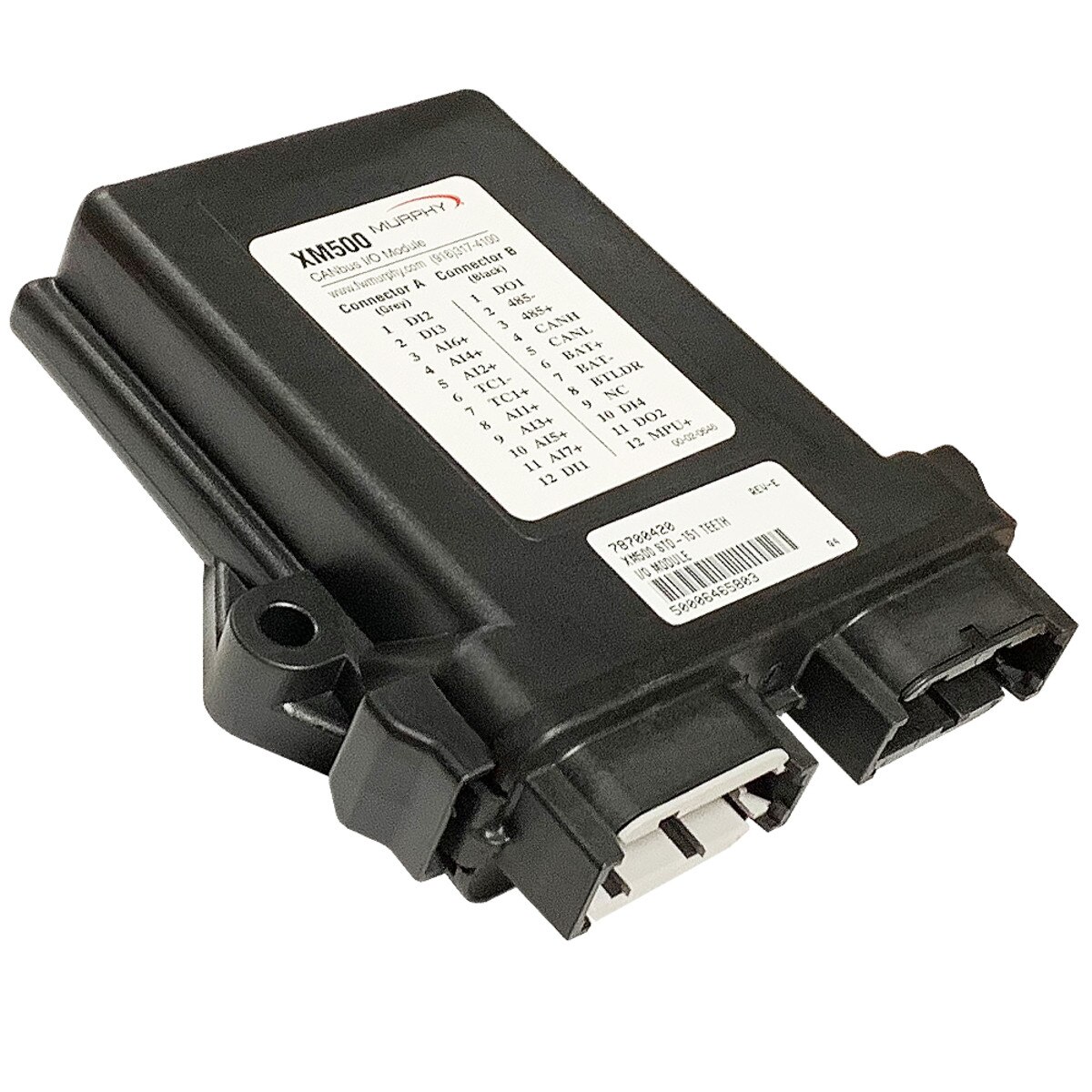

XM500: Configurable Input/Output Module (78700420)

(0)No Reviews yet
$553.99
SKU: XM500 J1939 I/O Module IC-183 (78700420)

This item is IN STOCK

Current Stock: 8

XM500: Configurable I/O Module that adds Input and Output data to the J1939 data stream for viewing on J1939 displays. (78700420)





The XM500 Module is a field configurable input/output module that communicates on a CAN bus using J1939 as its protocol. Sometimes the ECU that comes standard on a diesel engine or transmission isn't connected to all the sensors needed on a piece of equipment.

The XM500 allows you to seamlessly add analog and digital inputs and outputs to the system. The data is translated into the proper J1939 format and broadcast on the bus.

Because the XM500 broadcasts information using the J1939 standard protocol, the information can be displayed using standard J1939 display modules, such as the PowerView PV101, PV450 and PV780.





Features:



- Adds input/output to J1939 network

- Works with standard J1939 display modules

- Wide operating temperature range

- Industry standard Deutsch enclosure and connectors

- Custom programming available

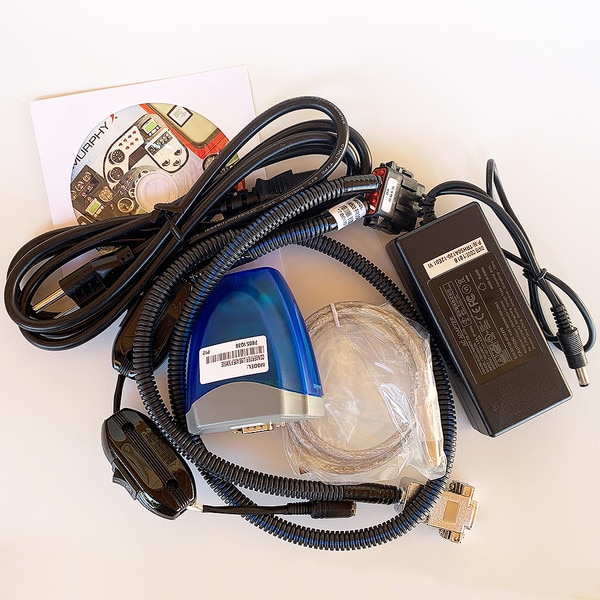

- Easy-to-use Configuration Tool available



Your application may require monitoring of other information which may not be provided by the OEM Engine or Transmission Electronic Control Unit (ECU), such as Fuel Level, Hydraulic Oil Pressure, or a Low Engine Coolant Level switch.



The XM500 is ideally suited to bring the additional information you need onto the J1939 CANBus, and can be configured to broadcast fault codes and activate digital outputs per input condition such as Fuel Level Low, Hydraulic Oil Temperature High, etc.



There are many potential applications for this device. Typical users are manufacturers of equipment using electronic diesel engines. This type of equipment may include: Tree Shakers, Tractors, Logging Equipment, Mining Equipment, Ground Support Equipment, Recreational Vehicles, Boats and more! If the device doesn't do exactly what you need - let us know. We will be happy to custom program the device for your specific original equipment needs.



Power Input: 8 to 28VDC

Operating Temperature: -40 to 85°C (-40° to 185°F)

Digital Inputs: 4 - Ground or battery positive activation

Digital Outputs*: 2 Sinking (500 mA)

*(Outputs are NOT reverse polarity protected. Damage will occur if B+ is connected to the outputs. Damage incurred from improper installation is not covered under the FW Murphy limited warranty policy.)

Communication Ports: CAN J1939

Dimensions: Length 5.24 in. (133 mm); Width 4.68 in. (118.8 mm); Height 1.42 in. (36 mm)

Product Weight: 10 ounces

Thermocouple Input (see 1 below): Type K and Type J

Speed Sensing Input: Magnetic Pick-up (2 to 120VAC RMS from 30 to 10,000 Hz)

Analog Inputs (see 2 below): 1 - Battery Supply Voltage (dedicated) 7 - Configurable as 0-5VDC, 4-20mA, resistive senders (see 3 below) or used as an additional Digital Input (1) = When the thermocouple input is used, only 5 resistive, 4-20 mA, or 0-5 VDC can be used instead of 7. (2) = Analog inputs can be exchanged for digital inputs (battery ground activation only), for a total of eleven digital inputs. (3) = Other resistive senders can be supported. Contact MurCal for programming charges.





Literature:






  1. Sales Bulletin

  2. Configuration Tool Installation & Operations Manual

  3. Wiring Diagram







MurCal is an Authorized Distributor of Murphy by Enovation products.

MurCal provides experienced application and product support, before and after the sale.





For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
