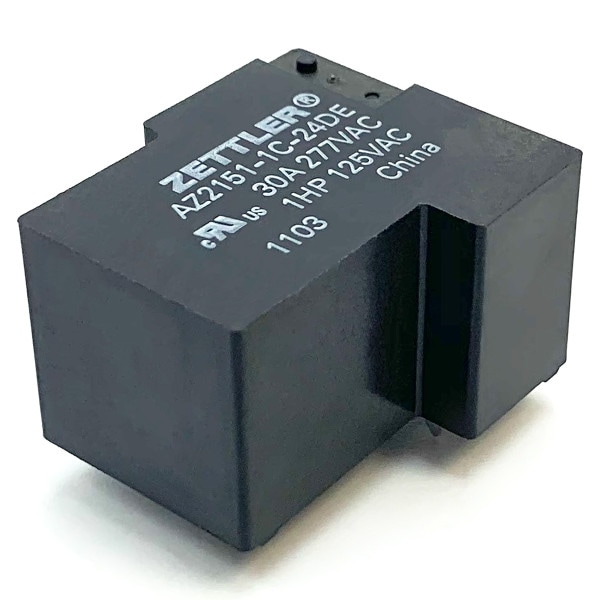

Zettler 40 Amp Miniature PC Board Relay (AZ2151-1C-24DE)
American Zettler AZ2151 40 Amp Miniature PC Board Relay (AZ2151-1C-24DE)
The Zettler AZ2151-1C-24DE miniature power relay features the following:
- 40 Amp switching capacity
- Life expectancy to 10 million operations
- Nominal coil VDC: 24
- Must operate: 18.0 VDC
- Maximum continuous: 36.1 VDC
- "1C" suffix denotes 1 Form C version
- "E" suffix denotes an epoxy sealed version
- Class B insulation for high temperature operation (130øC) standard
- UL, CUR file E44211
NOTE: This is not a MurCal stock item, as we are simply liquidating current inventory. Please contact inside sales for exact quantity available.
Literature:
For more detailed information, please download the Zettler AZ2150 (AZ2151 not available) data sheet shown below:
