bmd Brass Air Filter Regulator 0-125 PSI (RG40-1)

bmd Brass Air Filter Regulator 0-125 PSI (RG40-1)

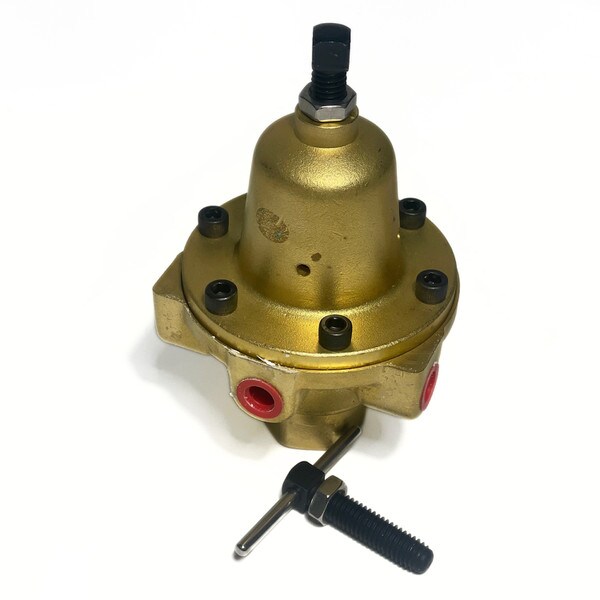

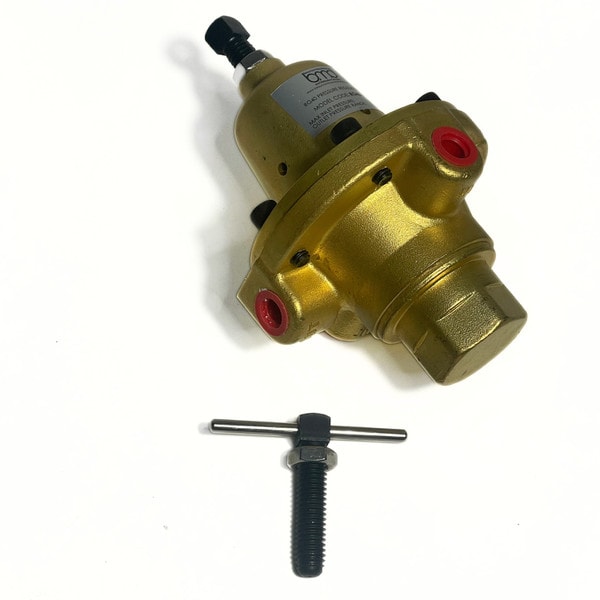

The RG40 is a compact, high-pressure, spring-operated regulator designed to reduce high input pressures down to safe and manageable working pressures. Built with a rugged brass or stainless steel body and housing, it features a durable metal diaphragm and nylon disk for handling significant pressure drops with reliability.

With an inlet pressure rating of up to 5000 psi and output ranges of 0-125 psi or 0-225 psi, the RG40 is ideal for demanding applications such as operating chemical injection pumps, valve actuators, or controllers. Its compact form and cost-effective design make it a versatile choice for various industrial needs.

Literature

RG40 Series Air Filter Regulator Sales Bulletin
