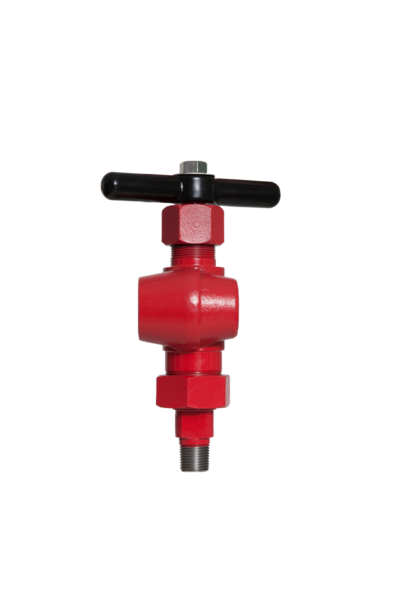

BMD - GV20 Gauge Valve, 1/2” Tank Union, 1/2” FNPT Glass Connection (GV20-F1)
BMD GV20 Gauge Valve 1/2 Tank Union 1/2 FNPT Glass Conn. (2X/Box) (GV20-F1)
BMD’s GV20 gauge valves offer ease of installation and compatible with all armored flat-glass level gauges
POWER FEATURES
- Designed to be used with BMD’s LG20 Level Gauges
- Also compatible with all armored flat-glass level gauges
- FNPT glass connections and union tank connections make for easy installation and removal
SPECIFICATIONS
- Connections:
- Glass Connection: 1/2” FNPT
- Tank Connection: 1/2” Union
Features:
- Safety Shutoff: Stainless ball check upstream of the seat shuts off medium flow in the event of glass breakage.
- Ergonomic Handle: Sturdy 0.75” diameter tee handle for ease of use and comfortable operation.
- Offset Design: Body and drain connections are offset from the tank connection for easy glass cleaning.
- NACE Compatible: Wetted parts conform to NACE MR-01-75 specifications for sour gas service.
Literature:
Sales Bulletin
