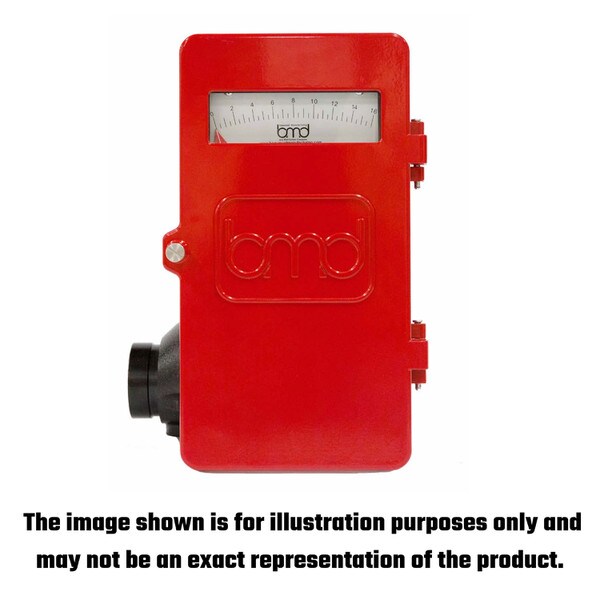

LC40, Electric Head Pressure Switch, 2" NPT Ductile Inlet, Viton, 0-24 Scale (LC40E-N1V-24)
bmd - LC40 Electric Head Pressure Switch, 2 NPT, Ductile Inlet Viton Diaphragm, 0-24 Scale (LC40E-N1V-24)
The LC40 is a head pressure-operated level controller meant for use on atmospheric storage vessels. The unit can be used as an easy-to-read, real-time visual indicator showing the height of the liquid in a vessel or tank. The switch option includes a SPDT electric switch that can be set to trigger at different heights for rising and falling level. It has adjustment knobs for zero offset as well as for span which is used to set it for different specific gravity fluids.
The LC40 senses the head pressure of the liquid in the vessel by means of a diaphragm. The pressure is then translated to height by means of the linkages in the unit. The fluid height is indicated by the position of the pointer on the height scale. As the pointer moves across the scale with rising liquid height, it triggers the switch.
Literature:
MurCal is an Authorized Distributor of BMD products.
MurCal provides experienced application and product support, before and after the sale.
