CRE - i4GEN - 10" Touch Screen Display (A56V0-10-00-A)

(0)No Reviews yet
$1,944.99
SKU: CRE - i4GEN - 10" Touch Screen Display (A56V0-10-00-A)

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

i4Gen: 10" Multi-Touch Screen Color Remote Display & Complete Management Software for Compact Platform (A56V0-10-00-A)



CRE's i4Gen is a customer interface offering users a way to monitor new CRE controllers. The hardware is a multi-touch screen color display developed for harsh environment and industrial areas. The display provides access to a particular controller’s data for control, measurement, and configuration of that controller. Thanks to an embedded TeamViewer© License, it is possible to remotely access the i4Gen for support, remote control, or fleet management.

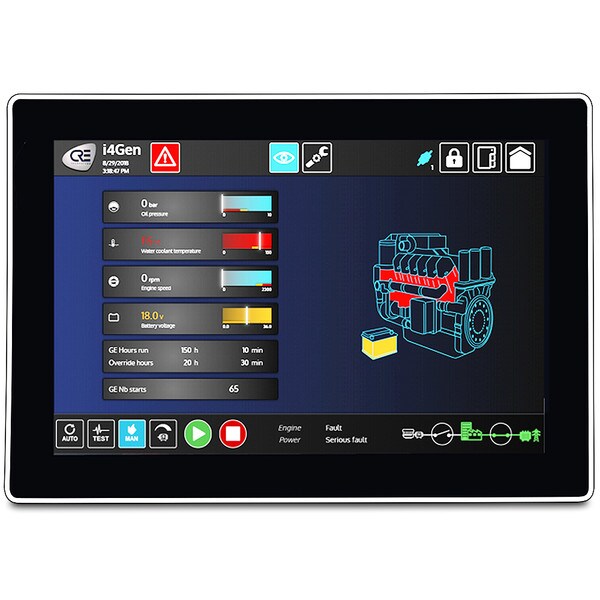

Larger Image: i4Gen: 10" Multi-Touch Screen Color Remote Display

Features:

•  10-point capacitive multi-touch
•  Edge-to-edge narrow bezel design and fan-less cooling system
•  Designed for easy wall mount, panel mount, and VESA mount installation
•  A truly flat, easy-to-clean front surface with an edge-to-edge design
•  USB 3.0 ports support lock device
•  Input / Output ports designed for easy connection
•  9 to 36VDC support using the DC-DC converter provided with the unit (i4Gen touchscreen DC voltage input only accepts 12VDC)
•  On-board, Intel® Braswell series SoC processor, with low power consumption for higher performance
•  On-board, 4GB DDR3L 1333Mhz SO-DIMM
•  On-board, One (1) full-size Mini-PCIE slot
•  On-board, One (1) M.2 slot (M-key), type-2242 SATA interface for SSD device
•  Supports, Two (2) RJ-45 Gigabit LAN port and One (1) external RJ-45 COM port
•  One (1) 2.4G WIFI module with support for 802.11 b/g/n WIFI communication

Additional Functions:
•  WiFi: The Mini PCI-E on-board socket in the board is integrated with a WIFI card (802.11 b/g/n) that can act as a mini wireless modem when external antennas are connected
•  Giga LAN: The system is integrated with Gigabit LAN network controller with ACPI (Advanced Configuration and Power Interface) management realizing efficient power management for the operating system
•  USB 3.0: Experience fastest data transfers at 5Gb/s with USB 3.0 the new latest connectivity standard. Built connect easily with next-generation components and peripherals, USB 3.0 transfers data 10 times faster and backward compatible with previous USB2.0 components
•  dB value: The system design features the low noise operation normally required in a living-room. The average is below 26 dB under normal operation

Control & Management Features:

Direct Display: i4Gen is able to display information from one controller using the Ethernet connection and shows a basic overview of the power plant by using controller CAN bus data when applicable.

Switch Connect: If i4Gen and the controllers are connected on an Ethernet HUB with the right network configuration, it is possible to easily switch the connection between controllers in the power-plant page to supervise each controller in turn.

Multi User Display: Several i4Gen can also be securely connected by Ethernet hub to a single controller (or a group of controllers), for redundancy application, multi-level access or long-distance monitoring panels.

Events Displayed / Recorded: An innovative feature will turn major alarms and faults into 3D graphical objects on the display, to warn the operator about an important event and to facilitate immediate diagnosis (ex: coolant tank will light up in red in case of coolant temperature fault, or in orange in case of coolant temperature alarm). An event alarm/fault recorder is also available on a dedicated display page, indicating time stamp, status, acknowledgment and corresponding variable. The event page can be filtered for diagnosis and investigation of selected variables.

Compatibility:

i4Gen is compatible with these controller versions:
•  GENSYS COMPACT PRIME: v2.10 or later
•  GENSYS COMPACT MAINS: v2.10 or later
•  AMF COMPACT: v2.10 or later
•  SYNCHRO COMPACT: v2.10 or later
•  MASTER COMPACT: v2.10 or later
•  MASTER COMPACT 1B: v2.10 or later
•  BTB COMPACT: v2.10 or later

LCD Display Panel:

•  IP Front: IP65
•  Screen diagonal: 256.5 mm (10.1 in.)
•  Display active screen size: 257.1 × 159.7 mm (10.1 x 6.29 in.)
•  Aspect ratio: 16:10
•  Physical resolution: 1280 × 800

External Connectors:

•  One (1) x HDMI
•  Four (4) x USB 3.0
•  Two (2) x Ethernet (LAN)
•  Two (2) x WIFI (VLAN)
•  One (1) x DC-In (connectors screwable): 9 – 36VDC • 1 x On/Off button

Operation / Mechanical / Power:

•  Operating temperature: -10°C – 60°C (14°F – 140°F)
•  Humidity: 5% – 80%
•  Net weight: 2Kg (4.41 lb.)
•  Gross weight: 2.9Kg (6.39 lb.) (includes packing)
•  Size: L x W x H: 268.5 x 186.5 x 59.7 mm (10.6 x 7.36 x 2.36 in.)
•  Material: Aluminium / Iron
•  Mounting VESA 100
•  Working power: 9 – 36VDC
•  Power consumption: 21W
•  Standby consumption: <1W



Literature:

  1. i4Gen Range Sales Bulletin
  2. i4Gen Range Technical Documentation
  3. i4Gen Range QuickStart Guide
  4. i4Gen Suite Configuration Software Improvements & Corrections
  5. Setting Up Murphy Senders in the CRE Controller
  6. Technical Documentation: Ethernet Connection Instructions


MurCal is an Authorized Distributor of CRE Technology products.
MurCal provides experienced application and product support, before and after the sale.
