WHB-BB (30700587) *SPECIAL ORDER ITEM*
WHB-BB Swichgage® Shutdown Panel for High Plains and Other Irrigation Engines; 518 PH-12 (30700587)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———

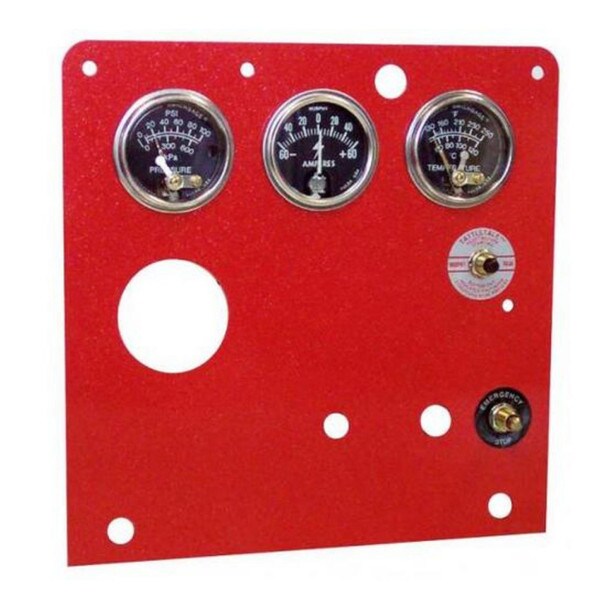

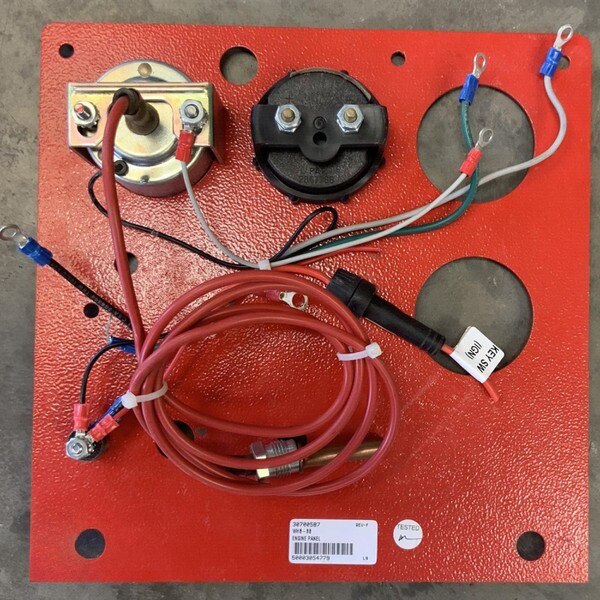

The Murphy WHB-BB open type panel with 518PH-12 magnetic switch is the industry standard for High Plains irrigation engines. This panel bolts directly to the engine flywheel housing. It includes Swichgage protection for low engine oil pressure and high coolant or high oil temperature, and have provision to add an additional Swichgage instruments, such as pump discharge pressure, voltage regulator, throttle cable, and start button or switch.
For diesel engines without shut-down solenoid in the injection pump, add a Murphy SV Series solenoid fuel shut-off valve or RP2300 series rack puller solenoid.
FEATURES:
- Ideal for High Plains Irrigation Engines
- Mounts Directly to Engine Flywheel Housing
- Swichgage Instruments for Low Oil Pressure, High Coolant Temperature and Ammeter
- Provision for Additional Instruments
- Panel Kit Includes: Low Lube Oil Pressure Swichgage instrument • High Coolant/ Temperature Swichgage instrument • 518PH-12 Magnetic Switch • PB128S Emergency Stop Push Button • Ammeter 60-0-60 • Provisions for additional Swichgage controls, such as irrigation pump pressure or engine oil temperature
Literature:
