200 Amp Magnetic Latching Battery Separator (SBS-200-001)

(0)No Reviews yet
$172.99
SKU: Trombetta SBS-200-001

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

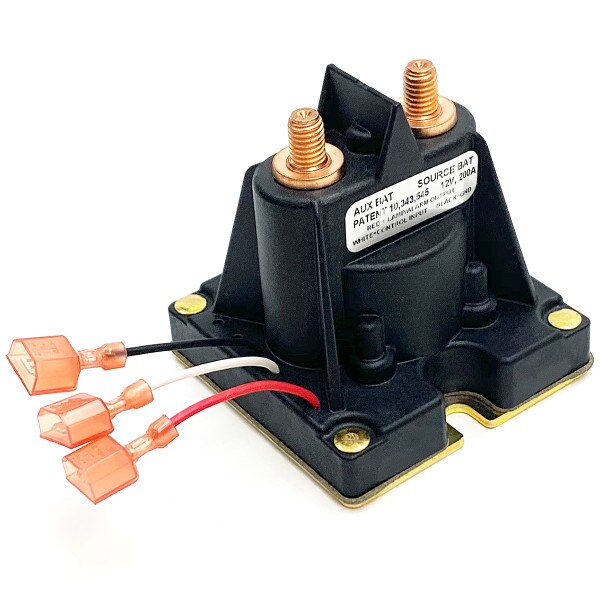

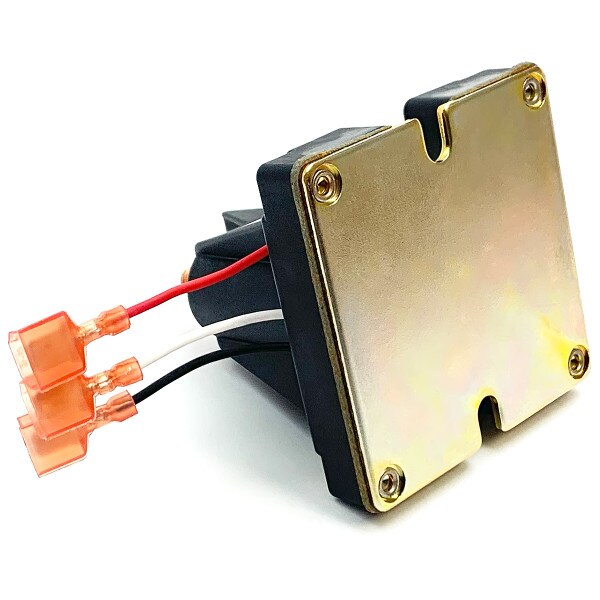

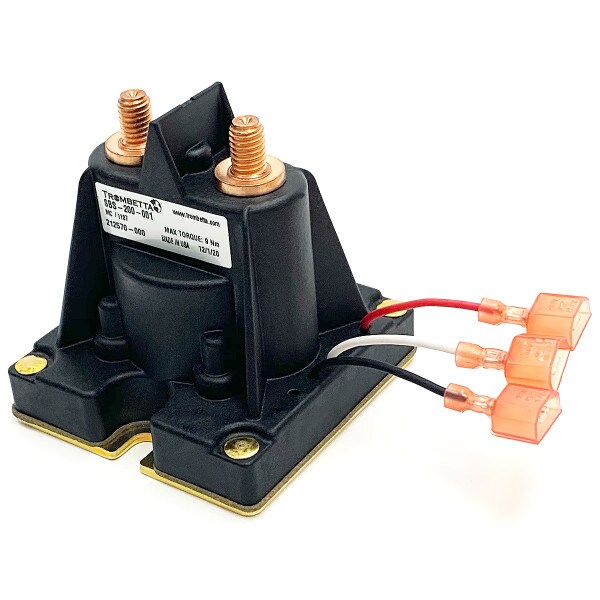

Trombetta 200A Magnetic Latching Battery Separator (SBS-200-001)

The SBS-200-001 is ideal for trucks, RVs, or emergency vehicles equipped with both main and auxiliary batteries. This device monitors the main and auxiliary battery to efficiently provide charging to the auxiliary battery without compromising a full charge on the main battery in a system. The modern design integrates the solenoid and electronics in a sealed package to deliver up to 200A of continuous carry current.

The magnetic latching battery separator monitors the voltages on both M8 terminals each second. It will open or close the contacts after specified delay periods only if the voltages are within specified parameters. This eliminates reaction to transients and short term voltage fluctuations. Except for a short 8 amp pulse when charging starts, the device draws less than 1 mA when open and no more than 10 mA when closed.



Literature

Sales Bulletin: Battery Separators



MurCal is an Authorized Distributor of Trombetta products.


MurCal provides application and product support, before and after the sale. Our in-house technical sales representatives have been trained by Trombetta and have the knowledge necessary to answer your questions. When you make an important purchase decision, be sure to consider the company that provides Trombetta's factory authorized sales and service.
